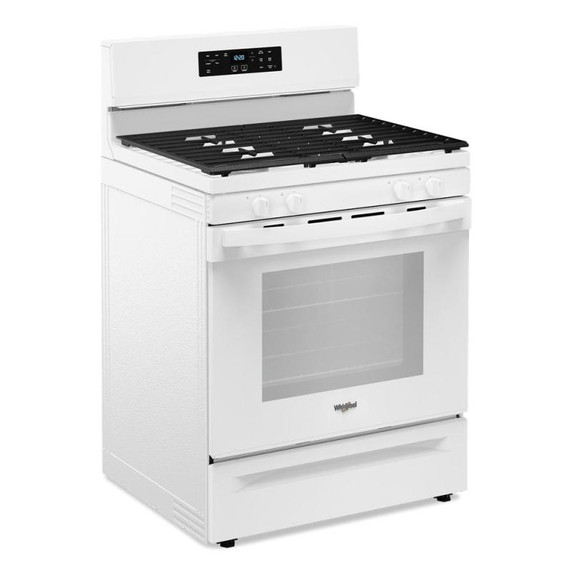

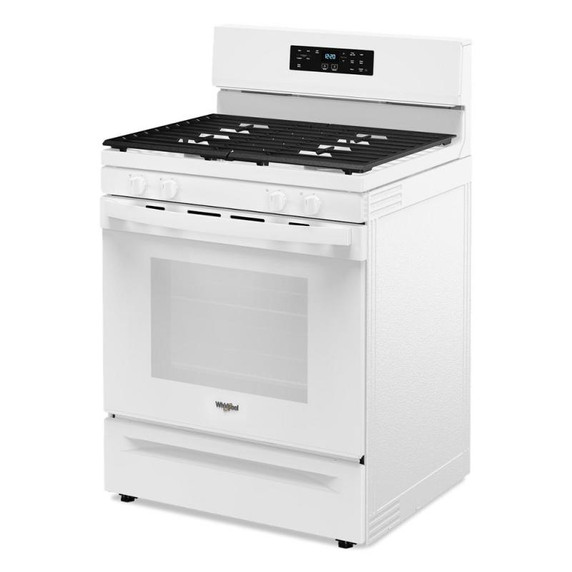

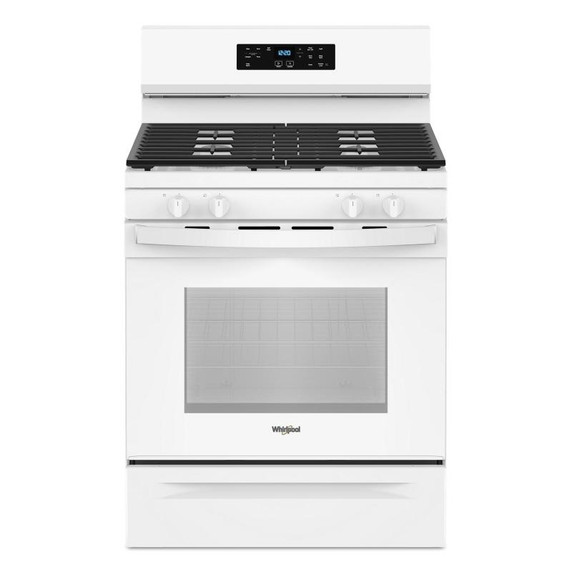

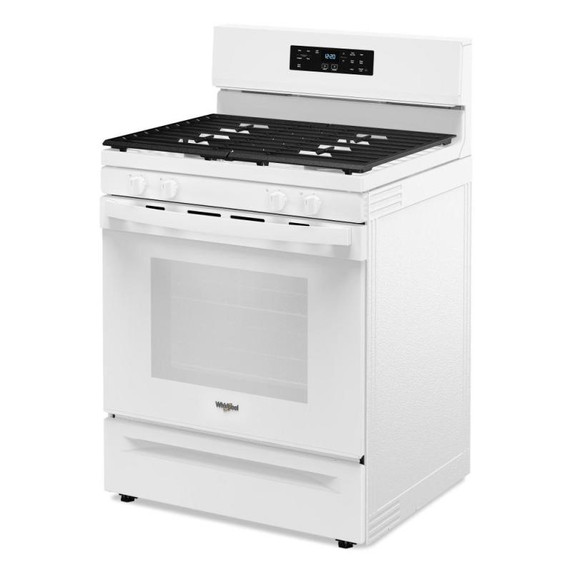

Whirlpool® 30-inch Self Clean Gas Range with No Preheat Mode WFGS3530RW

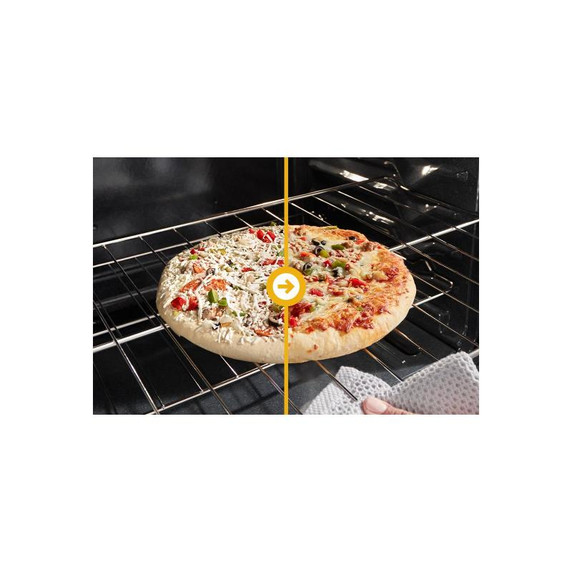

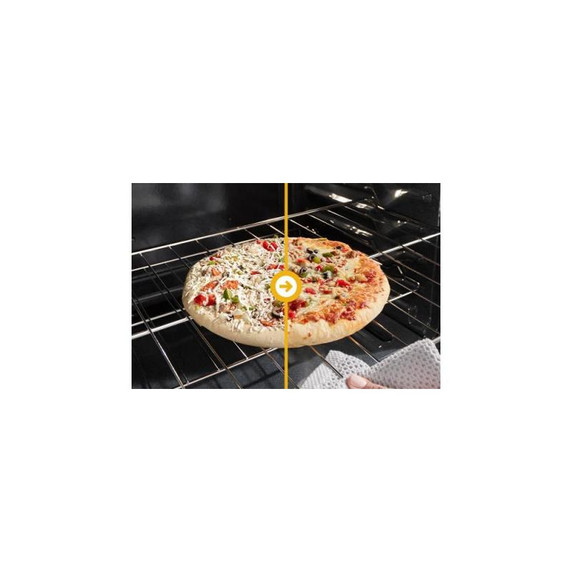

No Preheat ModeTake Preheating off your plate with No Preheat Mode. Simply place your food in the oven and start baking. The oven will adjust the cook time for frozen pizzas and more.

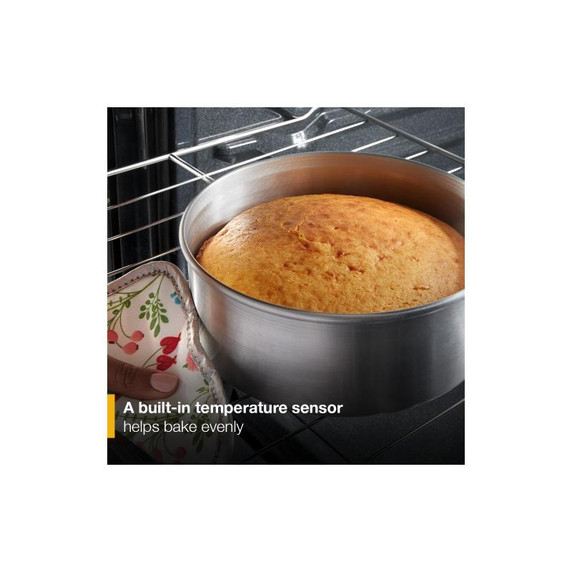

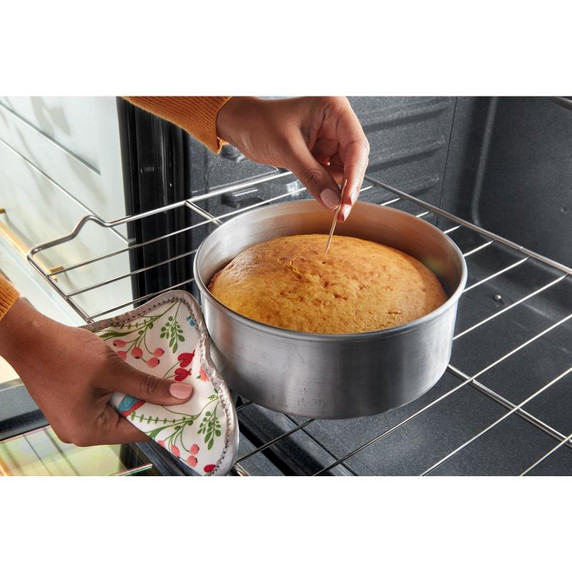

BakeSpend less time monitoring with a built-in temperature sensor to help Bake evenly. This sensor manages oven temperature for delicious results every time.

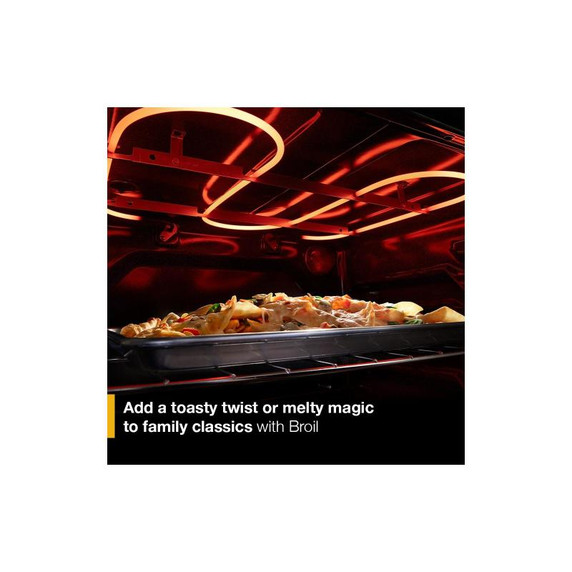

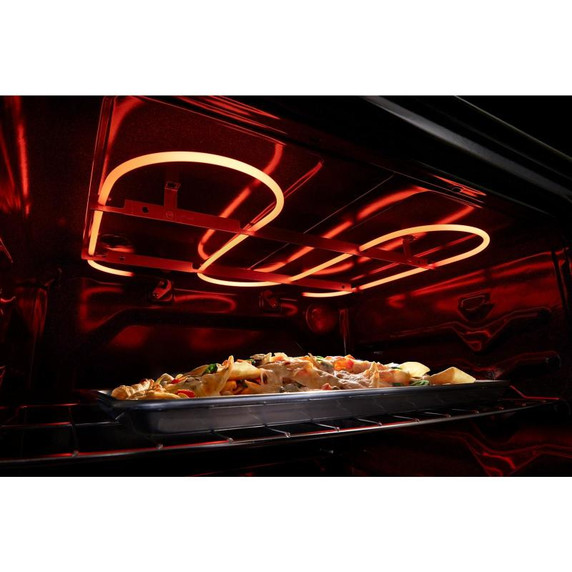

BroilRedefine mealtime with Broil to make crispy-melty nachos, juicy-seared meat, toasty grilled cheese and more.

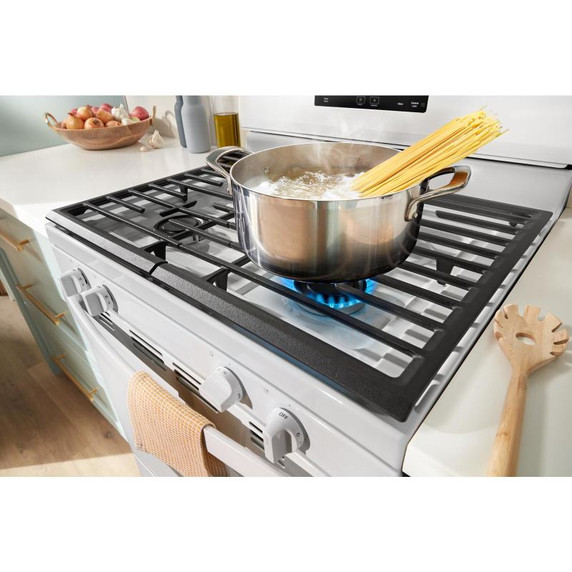

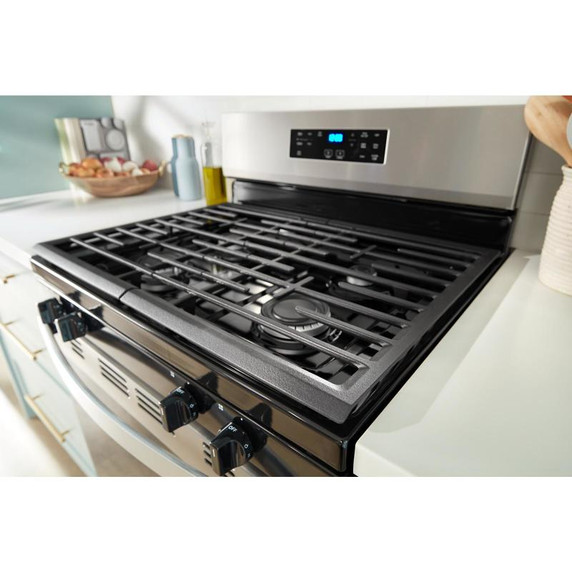

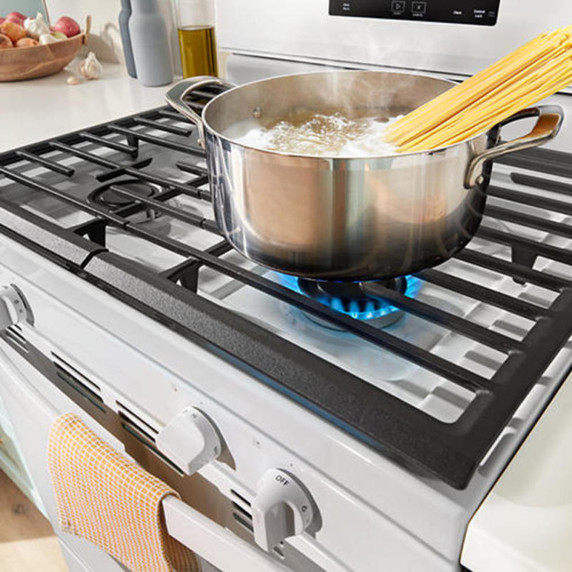

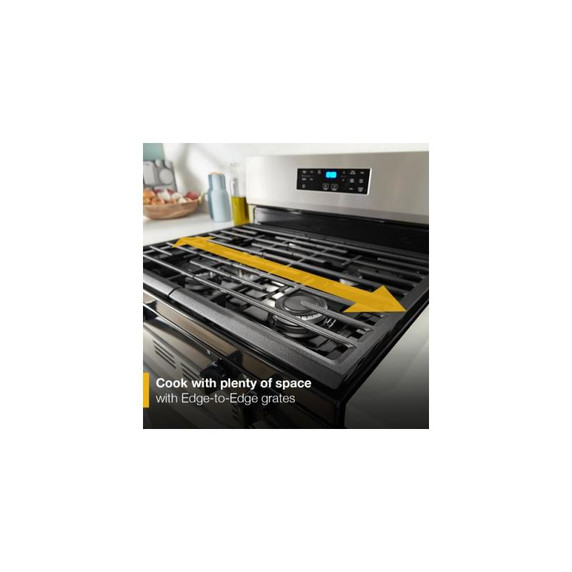

Edge-to-Edge Cast-Iron GratesEnjoy plenty of space to sauté, boil and simmer with Edge-to-Edge Cast-Iron Grates, and the flexibility of a cooktop with a range of burner sizes and power levels.

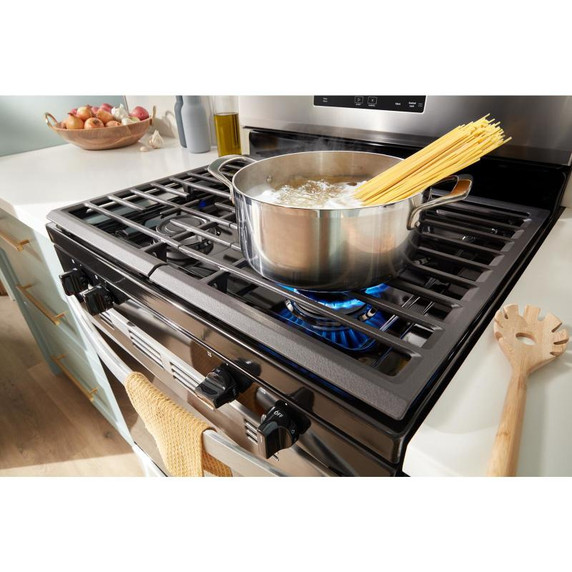

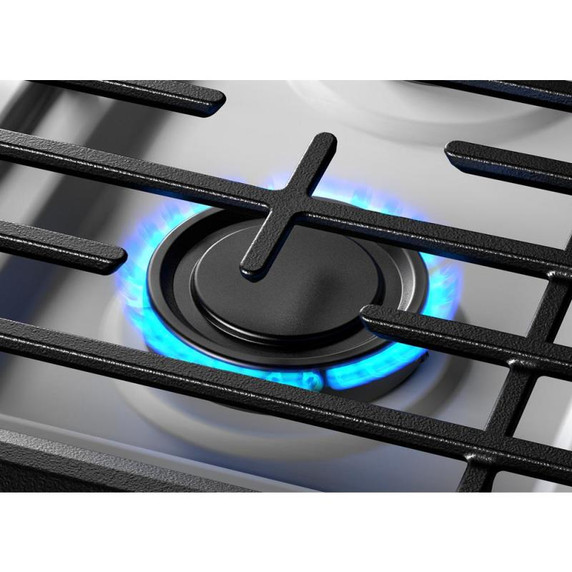

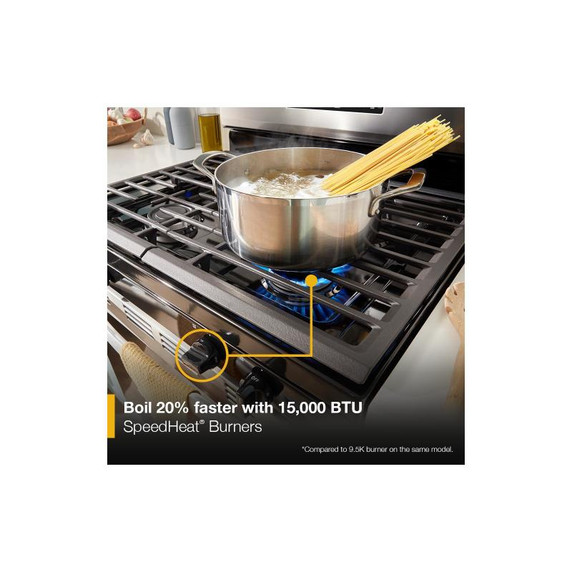

SpeedHeat™ BurnerUse the SpeedHeat™ Burner to boil 20% faster* with high heat, so you can get dinner to the table quickly. *Compared to 9.5K burner on the same model.
Keep WarmUse the Keep Warm Setting in the oven to help your dishes stay warm until your family is ready to dig in.
Self-Clean CycleEasily clean your oven with the adjustable Self-Clean Cycle that can be customized based on the amount of spills and splatters.

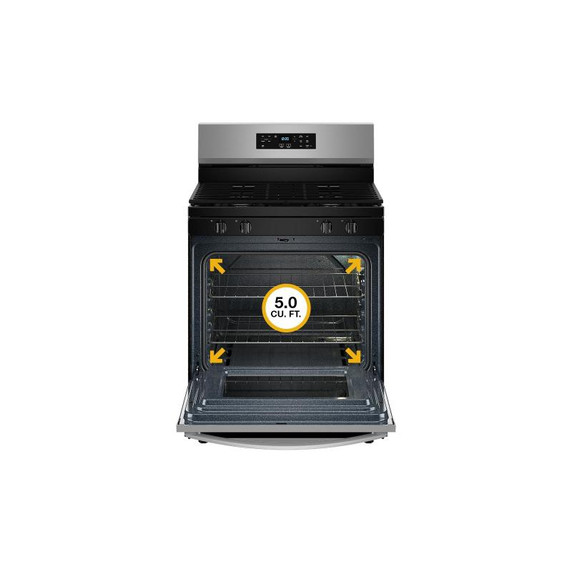

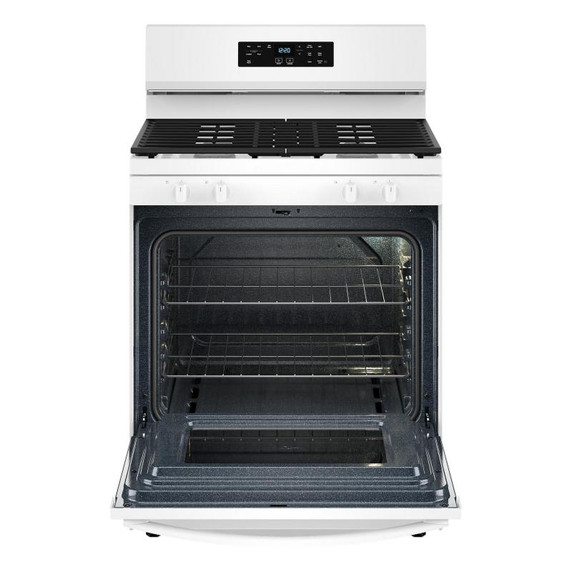

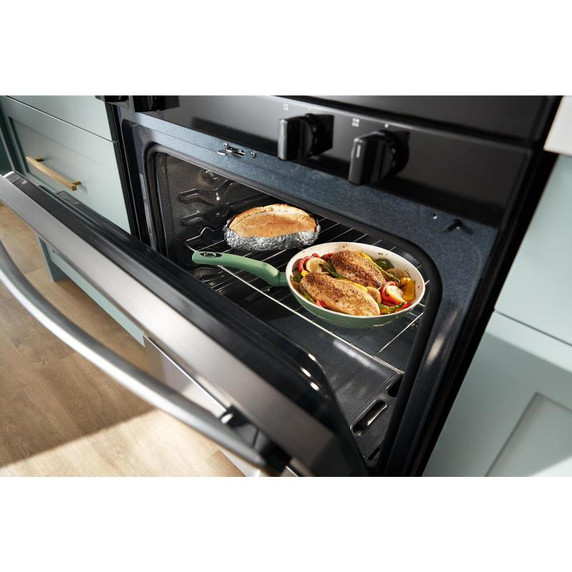

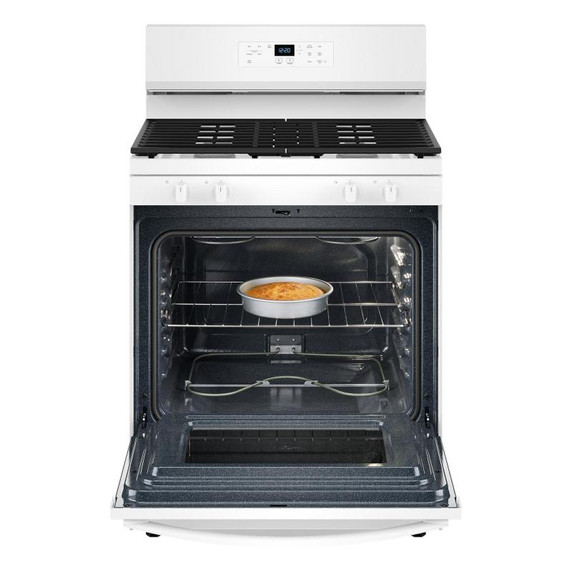

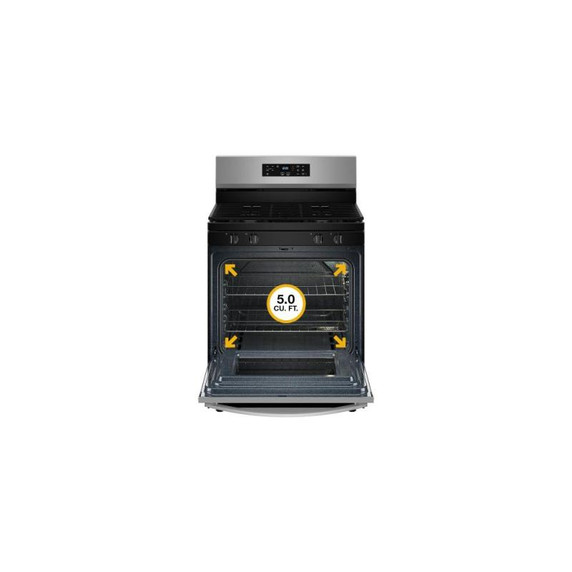

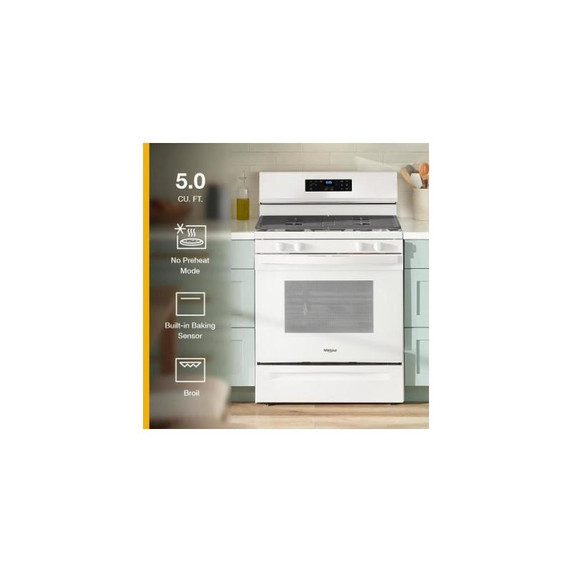

Large Capacity OvenCook for a crowd and fit large dishes, like a full-sized turkey, into the spacious large capacity 5.0 cu. ft. oven.

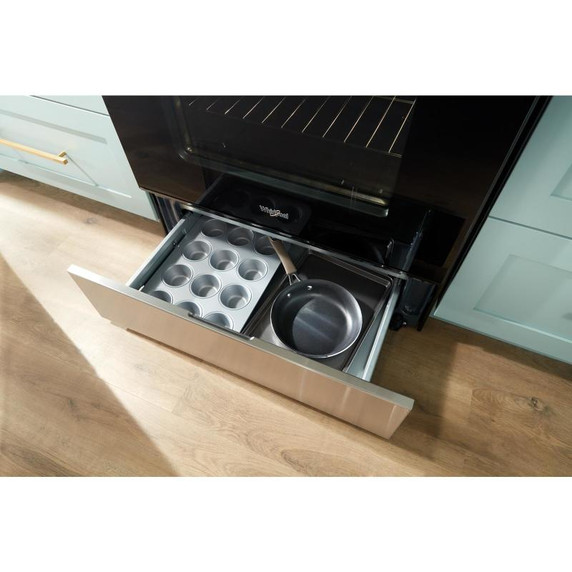

Storage DrawerEasily store kitchen items from baking sheets to cooking pans in the Storage Drawer.

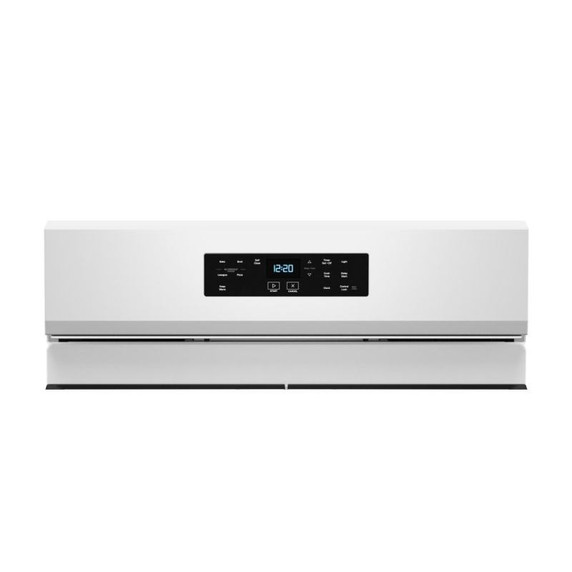

Controls

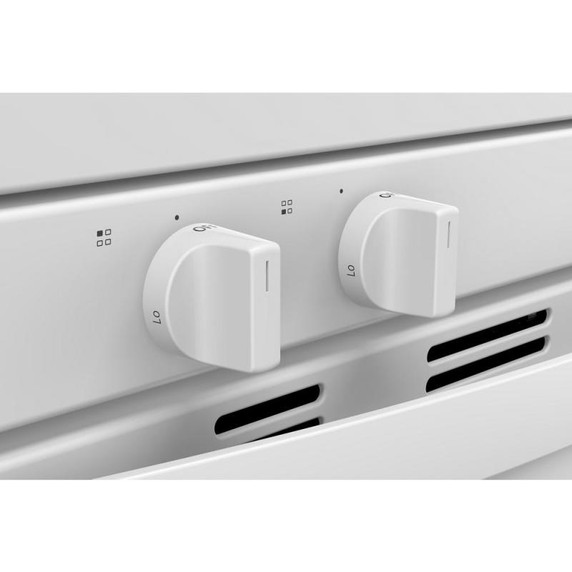

Knob TypePlastic
Electronic Display TypeLED
Knob ColorWhite
Electrical
Volts120
Hz60
Amps15
Power Cord IncludedYes
Configuration and Overview
Fuel TypeGas
Energy
Annual Energy Usage KwhNA
Specifications
Country Of OriginUSA
Dishwasher SafeYes
Matte Finish Vs Satin FinishMatte Finish
Cast Iron Vs PorecelainPorcelain Coated Grates
Extended Service Plan ParentEW04IW2Y, EW04IW1Y, EW04IW4Y
Optional Accessories4396096RB, W11123246
Product To Product PairsUVL5430JSS, WVU57UC0FS, WVU37UC0FS, WVW53UC0HV, WVW57UC0FS, UXT5230BDS, WVW73UC0LS, UXT5530AAS, WVW51UC0LS, WVU17UC0JW, WVW53UC0LS, WVU17UC0JS
Features
Heating Element On Indicator LightYes
Hot Surface Indicator LightNo
LP ConvertibleYes
Natural Gas ConvertibleYes
Automatic Convection Conversion Temperature AdjustNo
Power Outage CompatibleYes
Total Gas Btus Cooktop44,500
GriddleNo, Optional Accessory
Total Gas Btus Oven S26,500
Certifications
ULYes
ADA CompliantNo
CULYes
Star K CertifiedYes
Energy Rating Kwh YearNA
Exterior
Handle MaterialMetal
Door RemovableYes
Drawer TypeStorage Drawer
Handle ColorWhite
Handle TypeReach-Through Handle
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationFreestanding
Description
Size In30
Range TypeFreestanding
Details
Broiler Element Power1300WElectricBroil
Hidden Bake ElementYes
Oven Cleaning TypeSelf-Clean
Oven Light Switch LocationOven Control
Rack Guide TypeMolded
Interior ColorGrey
Number Of Oven Racks2
Oven Cooking SystemThermal
Number Of Rack Guides5
Number Of Oven Lights1
Oven Interior Depth In Inches18.5
Oven Interior Width In Inches24.5
Oven Light TypeIncandescent
Oven Rack TypeStandard (Both)
Broiler LocationTop Center

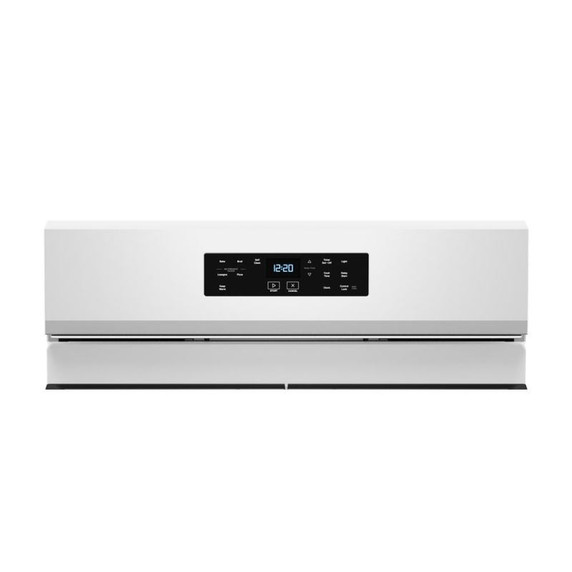

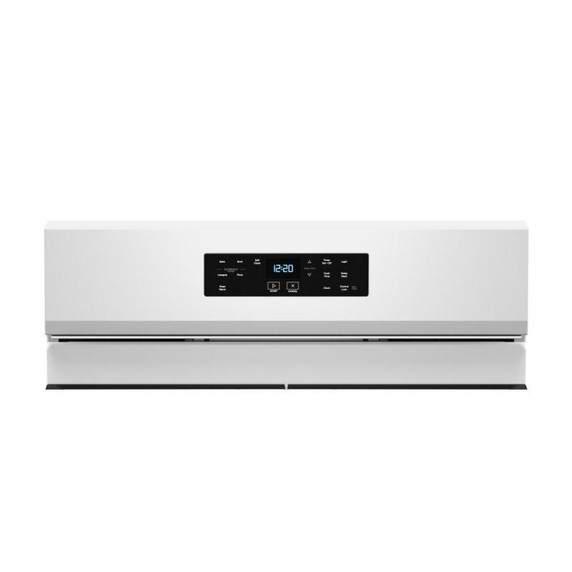

Oven Control TypeElectronic Touch
Oven Control Knob TypePlastic
Oven Control LocationRear Control
Cooktop Surface MaterialStainless/Porcelain Coated Steel
Convection Element TypeNone
Convection FunctionsNo
Cooktop Details
Cooktop Element StyleSealed Burners
Cooktop Control LocationFront
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack

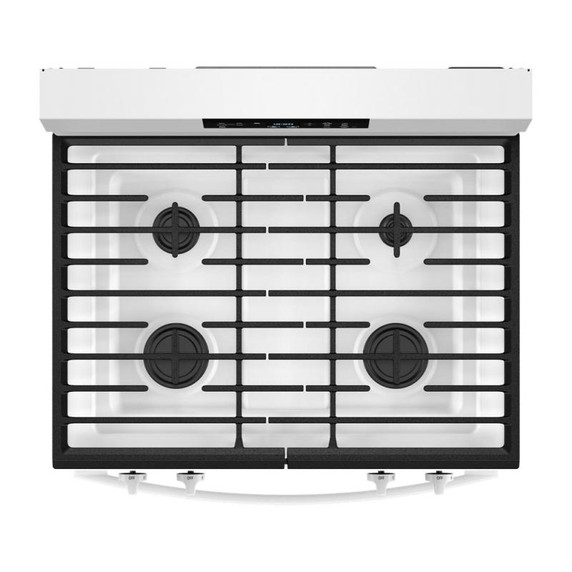

Cooktop ConfigurationAll Burners
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners4
Left Front Element Burner TypeStandard
Right Front Element Burner TypeStandard

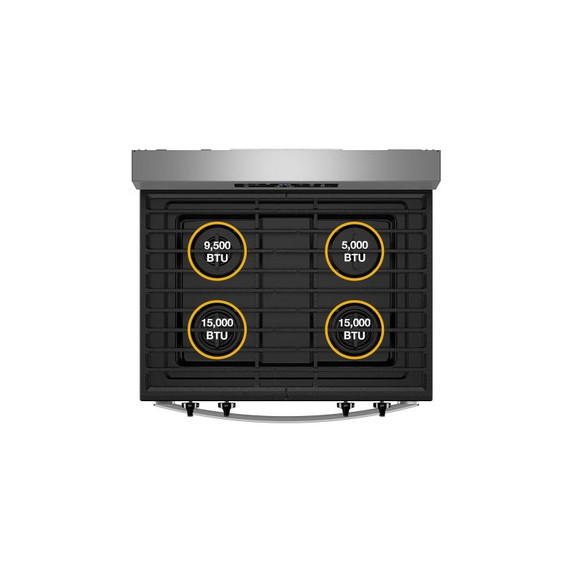

Left Front Element Burner Power15000BTU
Right Front Element Burner Power15000BTU
Auto Re IgnitionNo
Number Of Grates2
Right Rear Element Burner TypeSimmer
Right Rear Element Burner Power5000BTU
Left Front Element Burner Size4in.
Left Rear Element Burner Power9500BTU
Left Rear Element Burner Size4in.
Right Front Element Burner Size4in.
Right Rear Element Burner Size4in.
Ignition TypeDirect Spark Ignition
Grate DetailsContinuous; Dishwasher Safe; Matte Finish; Porcelain Coated Cast Grates
Carton Depth29.0"
Carton Height49.0"
Carton Width32.0"

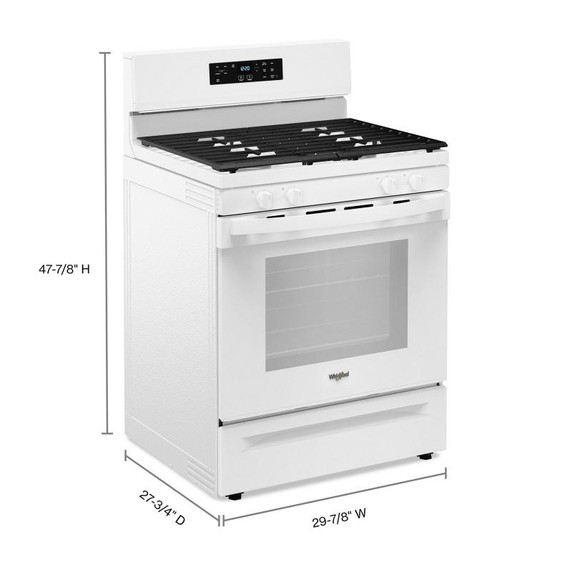

Depth Closed Excluding Handles25.31"
Depth Closed Including Handles28.0"
Depth With Door Open 90 Degree46.69"
Depth27.88"
Gross Weight173.0 lbs.
Height47.88"
Maximum Height47.88"
Minimum Height46.88"
Width29.88"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.0"
Capacity FT3 (cubic feet)5.0
