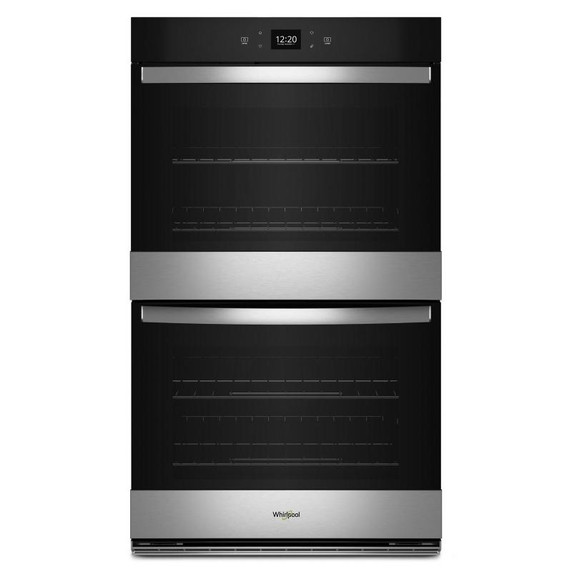

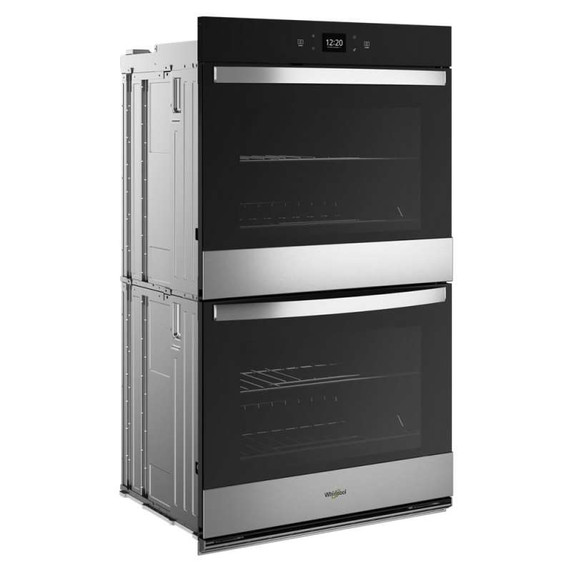

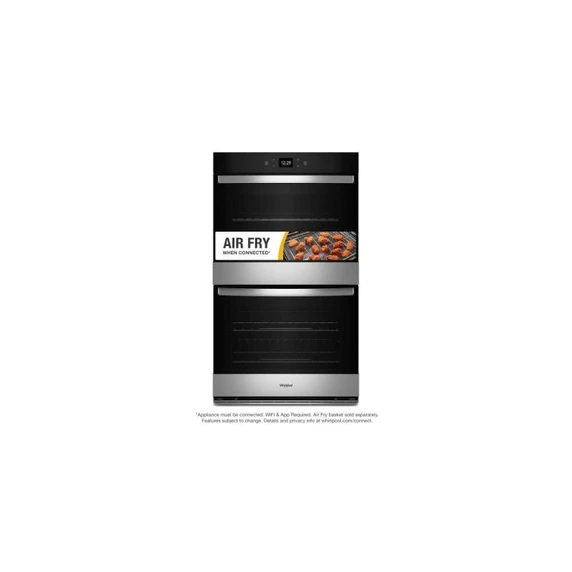

Whirlpool® 10.0 Total Cu. Ft. Double Wall Oven with Air Fry When Connected WOED5030LZ
Whirlpool
Whirlpool® 10.0 Total Cu. Ft. Double Wall Oven with Air Fry When Connected WOED5030LZ
Smart Wall OvenWhen you’re busy elsewhere, use your smartphone to get dinner started by remotely preheating the oven. Or, when your hands are full, use your compatible voice-enabled device to adjust the cook time or temperature with a voice command.*
*Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.
6-in-1 Wall Oven with Fan ConvectionCook however you want with six cooking modes in one wall oven: Frozen Bake™ Technology, Keep Warm, Broil, Convect Broil, Bake and Convect Bake. For even more cycles like Air Fry Mode, connect your appliance to receive Automatic Feature Updates.*
*Appliance must be connected. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.

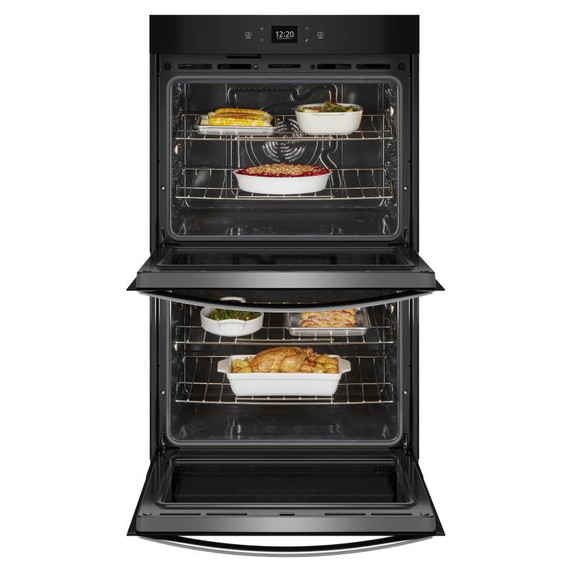

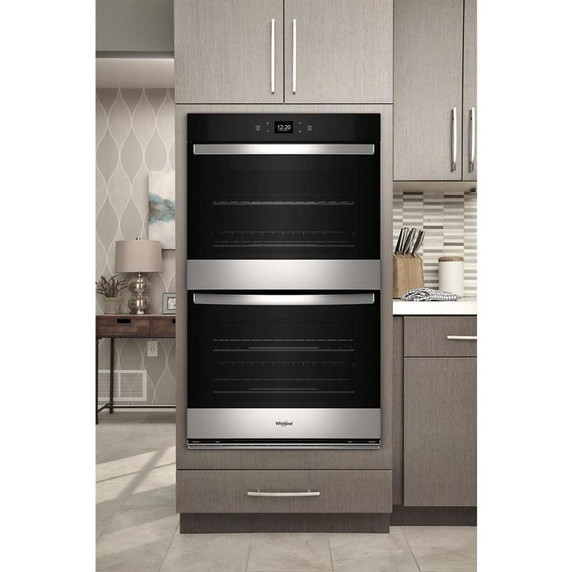

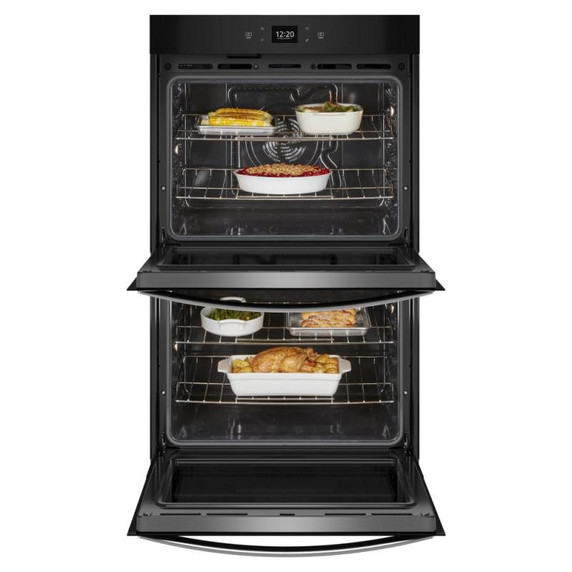

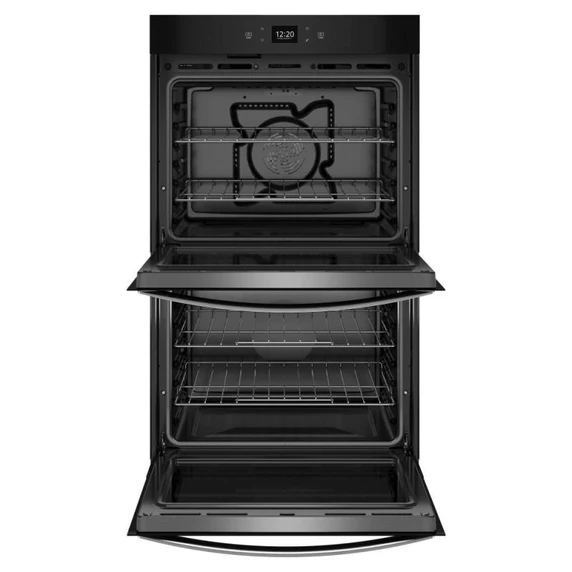

10.0 Cu. Ft. Total CapacityMake large family meals by cooking your main course, side dishes and dessert in this 10.0 Cu. Ft. Total Capacity double wall oven.

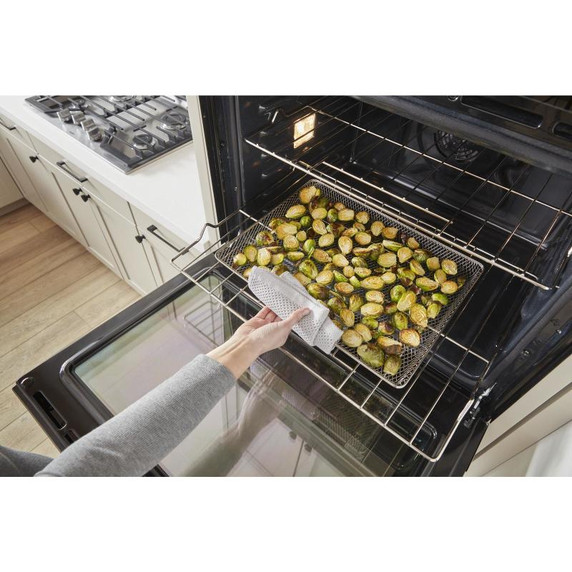

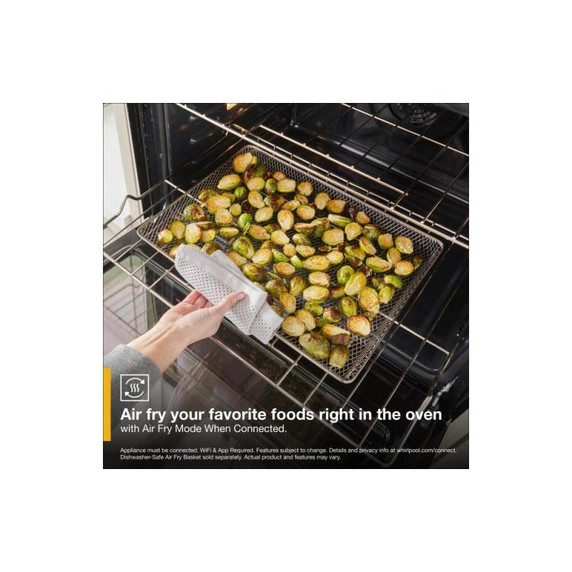

Air Fry Mode When ConnectedAir fry chicken nuggets, wings, fries and more to get crispy results right in your oven when your appliance is connected.* Air Fry Mode circulates hot air around the air fry basket to cook fried food in a healthy way, with less oil than traditional frying.
*Appliance must be connected. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.
Automatic Feature Updates When ConnectedSelect Whirlpool® Smart Appliances get smarter over time with new cycles like Air Fry Mode and automatic updates* to enhance performance. Once your appliance is connected, it downloads updates and adds new cycles as they’re released.
Appliance must be connected. WiFi & App Required. Features subject to change. Details and privacyinfo at whirlpool.com/connect.
Dishwasher-Safe Air Fry Basket (Sold Separately)For easy cleaning, put the Dishwasher-Safe Air Fry Basket (Sold Separately) right in the dishwasher when it gets messy.
Fingerprint ResistantAvailable in a stainless finish that’s easy to clean and resists fingerprints and smudges.

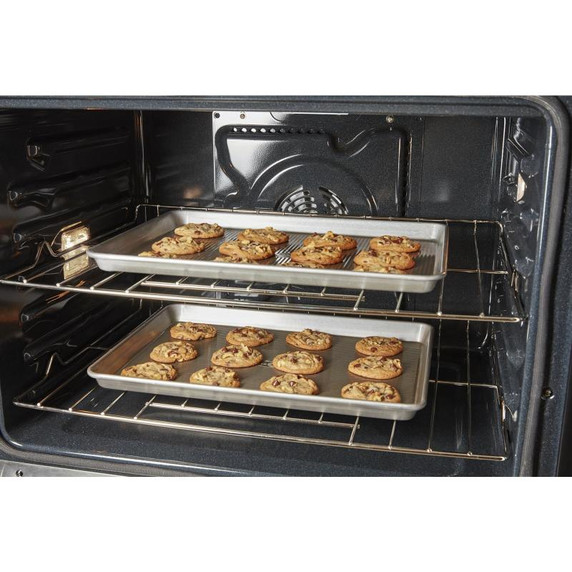

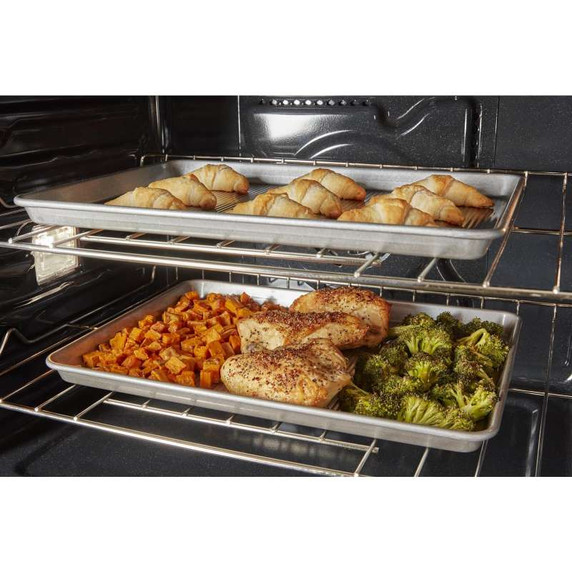

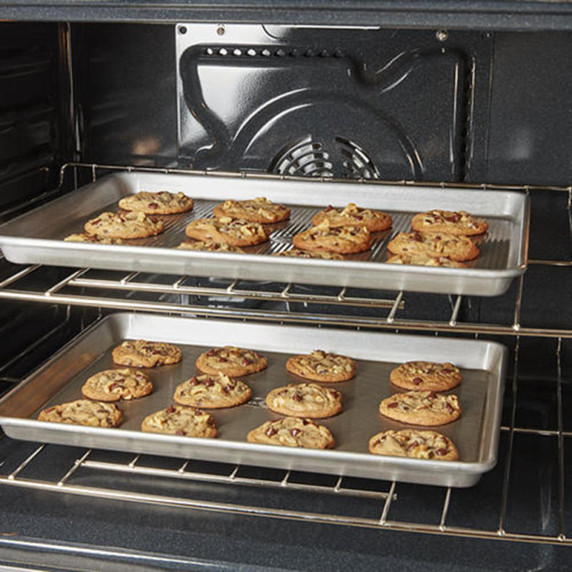

Fan Convection CookingCook meals with a fan in the back of the oven that distributes hot air more evenly than traditional baking, so you can bake on multiple racks at once.
Steam Clean optionClean up after everyday light spills using only heat and 1-1/4 cups of water—no harsh chemicals or cleaners needed. Used periodically to clean light spills on the bottom of the oven, it keeps the oven clean and reduces the need for frequent self-clean cycles.
Adjustable Self-Clean CycleClean without harsh chemicals using the high temperature self-clean cycle. Adjust the cycle for various soil levels to keep your oven looking clean.

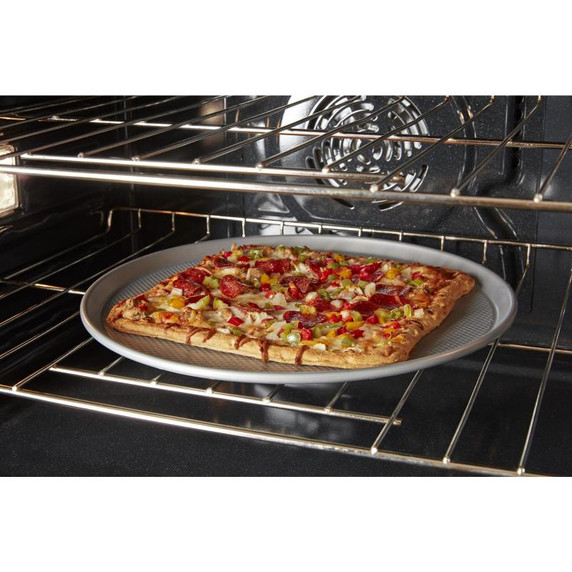

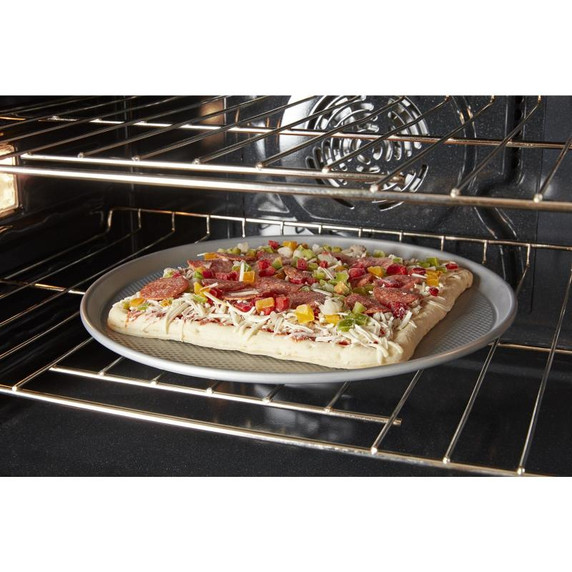

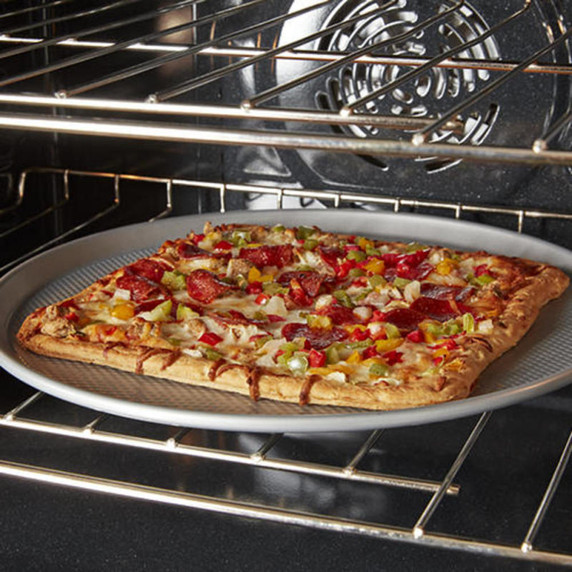

Frozen Bake™ TechnologySkip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.
Keep Warm SettingKeep dishes from getting cold with this setting that delivers low heat to the oven.

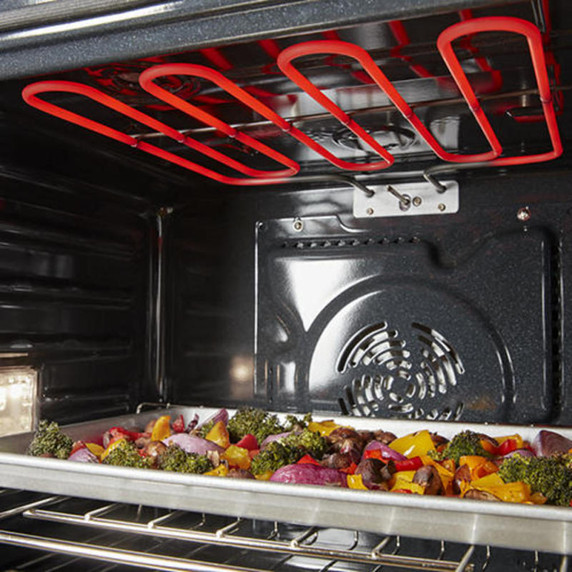

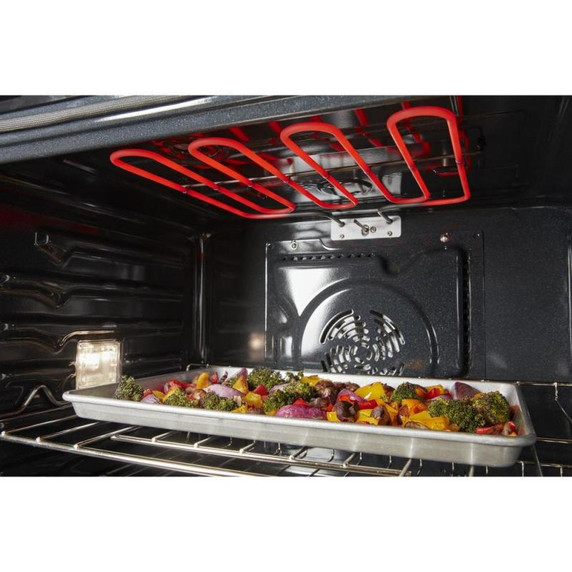

BroilWhen you place food close to the oven’s top heating element using the Broil Setting, you can quickly sear meat, char vegetables, brown lasagna, caramelize the top of a casserole and more.

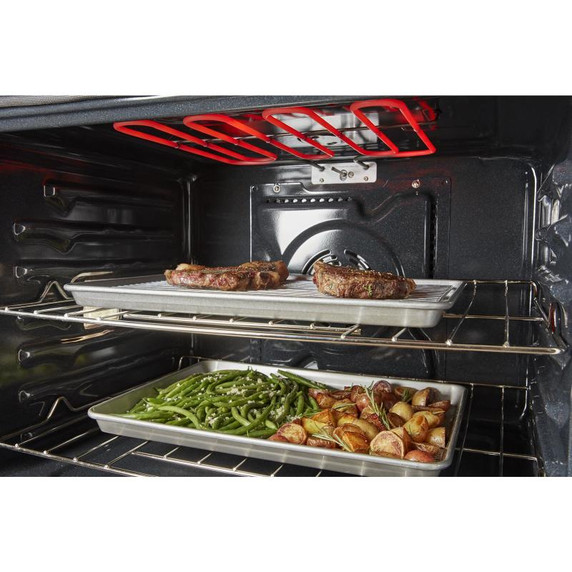

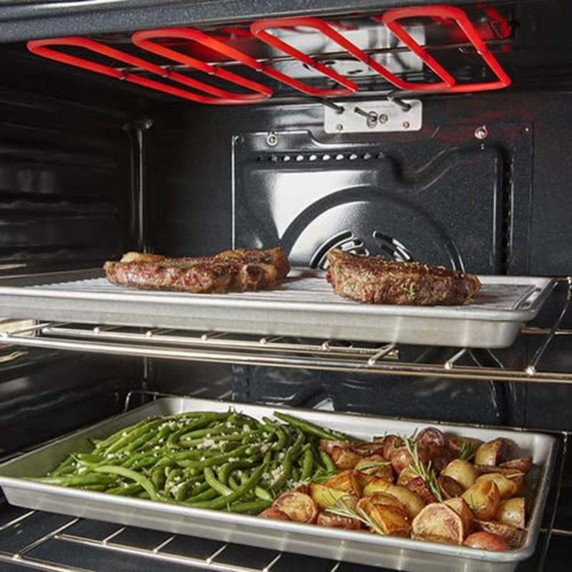

Convect BroilWhen cooking thicker cuts of meat like bone-in chicken or steaks over an inch thick, use the Convect Broil setting to brown the top while still keeping the hot air circulating around the food in the oven to cook your food.
BakeMake your favorite treats like cookies, pies, cakes or muffins with the Bake setting that uses heat from the radiant element in the oven to cook food.

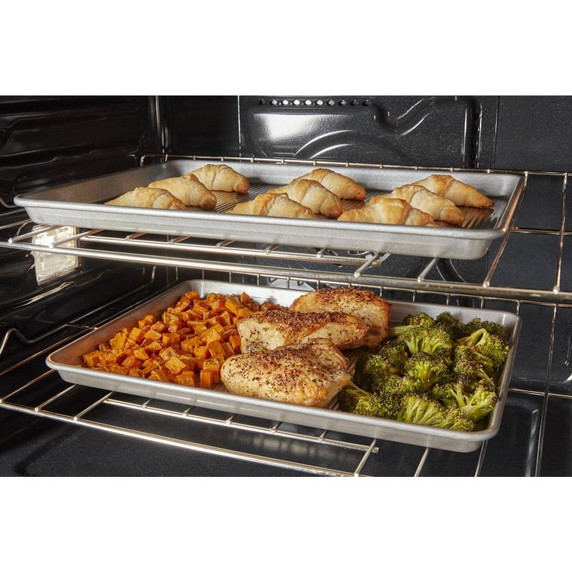

Convect BakeConvect Bake uses the bake and broil heating elements and a fan to achieve more even heating when cooking on multiple racks.*
*Compared to a traditional thermal-bake cycle on the same model.
Rapid PreheatSave time with faster preheating.* A rear fan combined with the use of all of the elements helps to heat the oven quickly.
*Single-rack baking with Rapid Preheat option versus two-rack without option.
Connects to Yummly® Smart ThermometerThe Yummly® Smart Thermometer helps eliminate guesswork in the kitchen by helping you cook meat exactly how you like it. Paired with select Whirlpool® Smart Ovens, it allows you to manage dinner remotely by sending cooking instructions, setting the oven temperature and monitoring progress from your phone. When the meat is finishedcooking, you’ll get a notification and your oven will automatically turn off.* Yummly® Smart Thermometer sold separately.
*U.S. only. Compatible smart appliance required. Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect and yummly.com.
Voice control with a compatible voice-enabled deviceControl your kitchen no matter what you’ve got on your hands using simple voice commands with the Google Assistant.

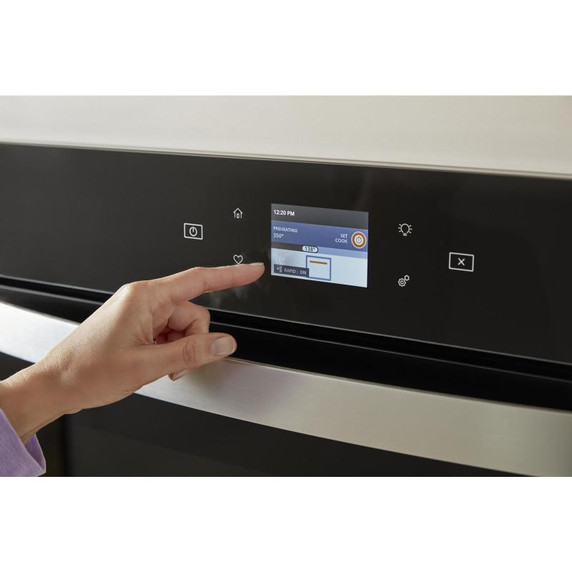

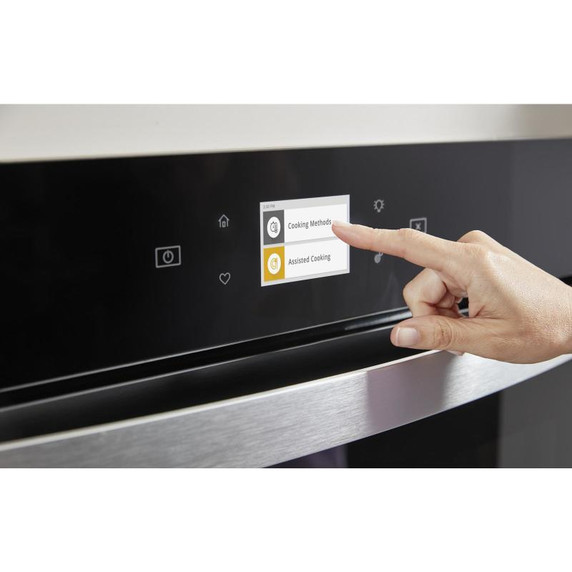

TouchscreenGet instant access to the settings you use most with a full-color Touchscreen display.
Yummly® Guided Cooking*
*U.S. only.Yummly® Guided Cooking* makes meal prep easier by helping you answer the question “what’s for dinner?” before it’s even asked. Recipes with the Connected Fork icon in the Yummly® App include step-by-step video tutorials that provide the extra assistance you need on busy days. Prompts in the app even send cooking instructions straight to select Whirlpool® Smart Wall Ovens at the right times, so dinner’s ready when your family’s hungry.**
*U.S. only. **Select recipes only. Compatible smart appliance required. Appliance must be set to remote enable. Features subject to change. Details and privacy info at whirlpool.com/connect and yummly.com.
FavoritesMake your favorite cooking settings easy to access by creating and saving them right in the Whirlpool® App or directly on your appliance.*
*Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.
Assisted CookingAssisted Cooking cycles calculate and set the ideal cooking time and temperature for common foods like casseroles, meat, fish, vegetables, pizza and some baked goods.
Scan-to-Connect Technology*
*U.S. only.You don’t need to be a tech expert to connect your new appliance. Simply open the Whirlpool® App, add your appliance and follow the guided experience to get up and running.*
*Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.

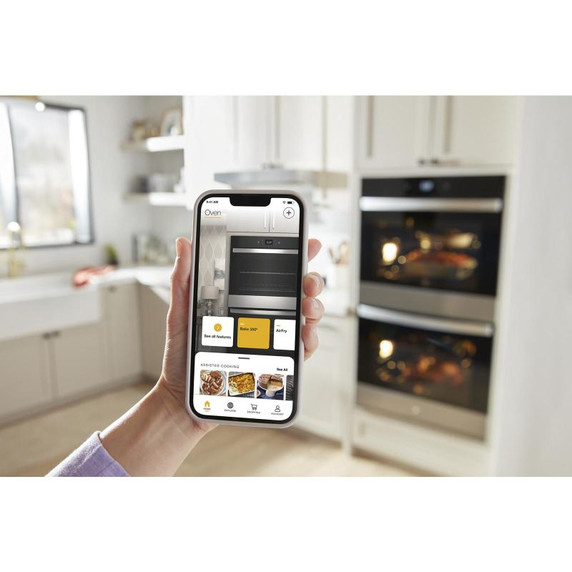

Remote StartWhen set to remote enable, use your smartphone or tablet to remotely turn your cooking appliance on so it’s heated up and ready to cook meals when you are.*
*Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.ca/connect.
Multi-Step CookingMake multi-step meals more simple. Use your smartphone or tablet to send multiple cooking instructions to your appliance all at once.* The temperature automatically adjusts based on the recipe you enter for great results.
*Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacyinfo at whirlpool.com/connect.

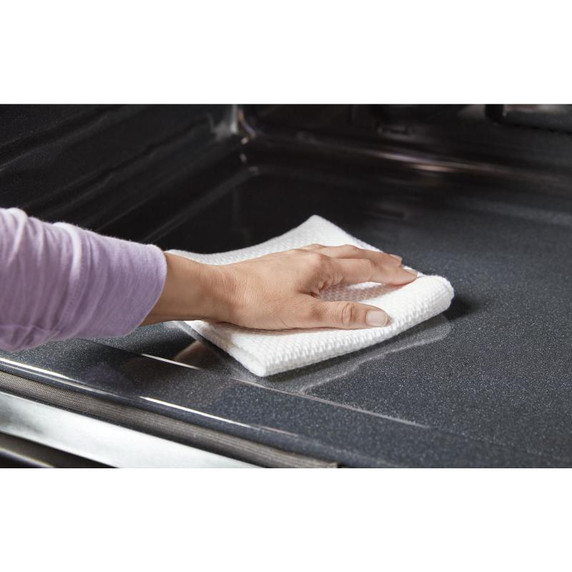

Hidden Bake ElementA concealed bake element placed under the floor of the oven creates a smooth surface at the bottom of the oven for easy cleaning.
Delay StartRun your load on your schedule. This feature allows you to delay the start of your cycle for up to 12 hours.
Control Lock ModeDisable the control panel to avoid unintended use and easily clean controls.
Extra-Large Oven WindowKeep an eye on your meal through the Extra-Large Oven Window.
Sabbath ModeUse Sabbath Mode to keep the oven on the Bake setting at a set temperature which allows for cooking or warming food until it’s turned off. When this mode is enabled, displays, tones and all other cooking and cleaning cycles are disabled.

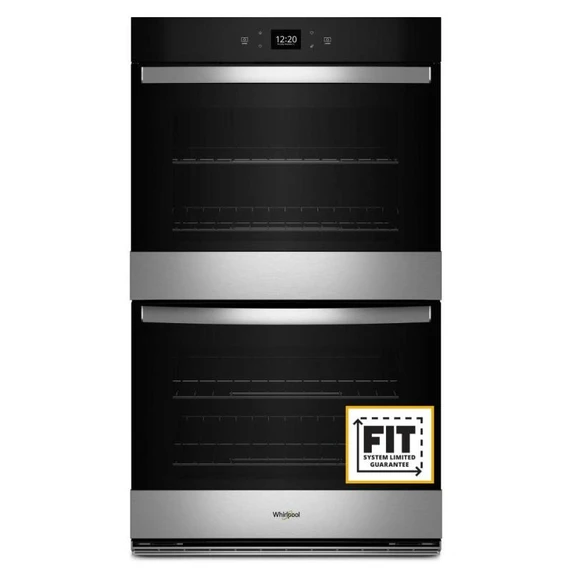

FIT System Limited GuaranteeThe FIT System Limited Guarantee ensures your new Whirlpool® Wall Oven will fit or get up to $300 toward cabinet modification.*
*Fit System Limited Guarantee: On 27"" and 30"" Whirlpool® Wall Ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified. Visit www.whirlpool.com/fit-guarantee.html for complete details.
An American Company for Over 100 YearsWhirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.
Controls
Control TypeElectronic
Display ColorFull Color
Electrical
Hz60
Volts240
Power Cord IncludedNo
Amps40
Configuration and Overview
Fuel TypeElectric
Compatibility
ConnectivityApp; Remote Access; Voice Controlled; WiFi
Energy
Annual Energy Usage Kwh352
Specifications
Country Of OriginUSA
Sabbath ModeYes
Extended Service Plan Parent
Product To Product Pairs

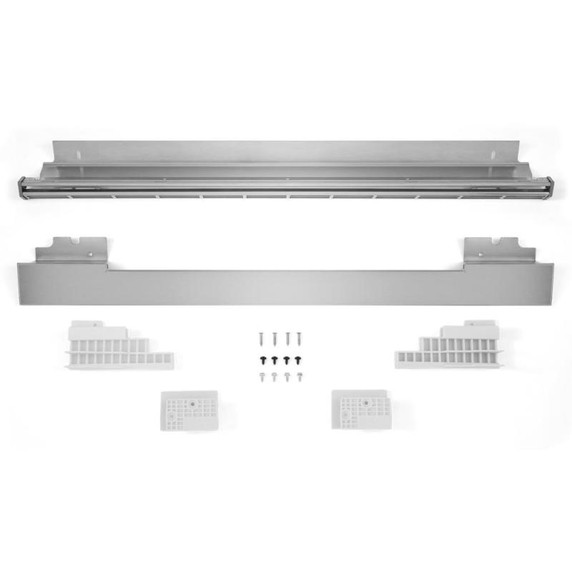

Optional AccessoriesW11570325, W11692811, W11551866, W11570323, W11570321
Features
Language ConversionEnglish/French/Spanish
Power On Indicator LightYes
Oven SelectionsAir Fry, when connected; Auto On; Bake; Broil; Cancel/Off; Clock; Control Lock; Cook Time Indicator; Delay Start; Favorites; Frozen Bake; Keep Warm/Warm Hold; Language Conversion; Rapid Preheat; Sabbath Mode; Stop Time; Timer
Certifications
ULYes
CULYes
Energy Rating Kwh Year352
Exterior
Handle MaterialMetal
Handle ColorStainless Steel
Configuration
Oven ConfigurationDouble Oven
Description
Size In30
Details
Hidden Bake ElementYes
Oven Cleaning TypeSelf-Clean
Interior ColorGrey
Interior CoatingPorcelain
Light ControlOven Light Touch Pad
Number Of Bake Elements1
Number Of Broil Elements1
Light TypeHalogen
Convection FunctionsBake; Broil; Convection Conversion
Bake Element Power2800W/2427W
Lower Oven Interior Depth In Inches19.0
Lower Oven Interior Height In Inches18.0
Lower Oven Number Of Oven Lights2
Number Of Lower Rack Guides6
Number Of Upper Rack Guides6
Upper Oven Interior Depth In Inches19.0
Upper Oven Interior Height In Inches18.0
Upper Oven Number Of Oven Lights2
Upper Oven Interior Width In Inches25.0
Broiler Element Power3600W/3120W
Convection Element Power Watts2500 W/2167 W
Number Of Lower Oven Racks2
Number Of Upper Oven Racks2
Lower Oven Interior Width In Inches25
Carton Depth31.0"
Carton Height54.0"
Carton Width35.0"

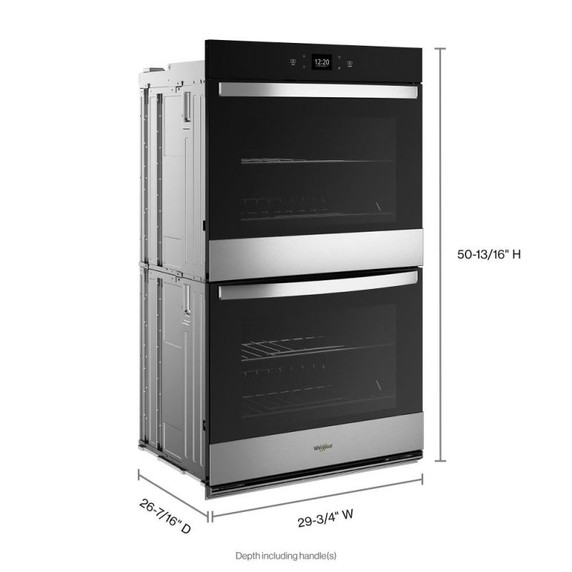

Depth Closed Excluding Handles24.44"
Depth Closed Including Handles26.44"
Depth With Door Open 90 Degree46.19"
Depth26.44"
Gross Weight264.0 lbs.
Height50.81"
Net Weight259.0 lbs.
Width29.75"
Cutout Depth24.0"
Cutout Height50.25"
Cutout Width28.5"
Capacity FT3 (cubic feet)10.0
