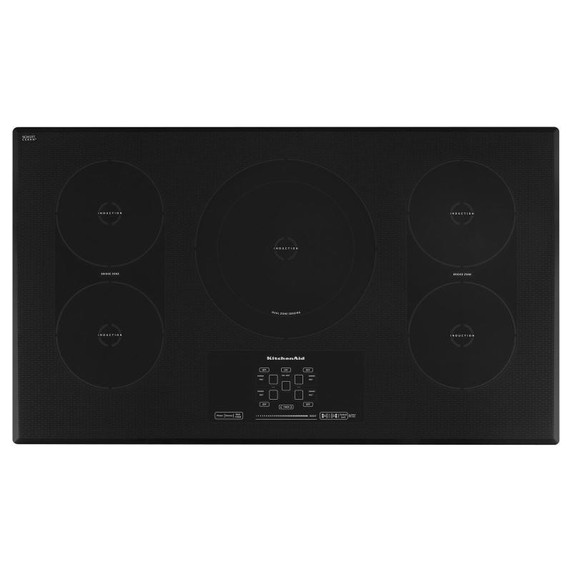

OPEN BOX of Kitchenaid® 36-Inch 5-Element Induction Cooktop, Architect® Series II KICU569XBL
12 Heat Level SettingsProvide various levels of heat to fine tune cooking techniques ranging from melting chocolate and simmering a sauce to searing meat or achieving a rapid boil.
12''/9'', 4800/2500-Watt ElementOffers two element sizes in one space to accommodate a variety of pan sizes without changing elements and allows you the power needed to cook at high heat.
4 Elements with Bridge FunctionsAllows the flexibility to convert four cooking zones into two large cooking zones which provides additional space to accommodate specialty cookware.
5 Element CooktopCook more of your family's favourites and enjoy added versatility with a fifth element.
Control LockHelps prevent unintended use and makes it easier to clean the control panel.
Melt and HoldUses low power levels for melting delicate ingredients or keeping cooked food warm without scorching.
Pan Size DetectionProvides feedback on whether pan size is suitable for the selected element.
Performance BoostAllows you to exceed the maximum heat-level setting for up to 10 minutes, perfect for rapid boiling.
Simmer FunctionAutomatically selects a low power level to help maintain a constant simmer without boiling over.
Touch-Activated ControlsIntegrate seamlessly into the surface and include a slider for heat-level selection.
Controls
Control TypeManual
Control LocationFront
Electrical
Hz60
Amps50
Volts240
Power Cord IncludedNo
Configuration and Overview
Fuel TypeElectric
Specifications
Country Of OriginItaly
Optional AccessoriesW10355051B
Extended Service Plan ParentEW08IW1Y, EW08IW2Y, EW08IW4Y
Product To Product PairsKVIB606DBS, KVIB606DSS, KVUB406GSS, KVUB606DSS, KVWB406DSS, KVWB606DSS, KVWB606HBS, KXD4636YSS, UVL6036JSS
Features
Heating Element On Indicator LightYes
GriddleN/A
Hot Surface Indicator LightYes
Downdraft VentNo
Installs Over Built In OvenYes
Automatic Pan DetectionYes
Digital DisplayYes
Refinements
Kad CooktopEven-Heat Melt Burner
Certifications
ULYes
ADA CompliantNo
Description
Size In36
Cooktop TypeTraditional
Combinations With OvenKOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107
Cooktop Details
Center Front Element Burner TypeDual
Center Rear Element Burner TypeDual
Number Of Cooking Element Burners5
Center Front Element Burner Size12in.
Cooktop Element StyleInduction
Left Front Element Burner TypeBridge
Left Rear Element Burner TypeBridge
Right Front Element Burner Size7in.
Right Front Element Burner TypeBridge
Right Rear Element Burner TypeBridge
Left Rear Element Burner Size7in.
Right Rear Element Burner Size7in.
Right Front Element Burner Power2500W/1800W
Left Front Element Burner Size7in.
Left Front Element Burner Power2500W/1800W
Left Rear Element Burner Power2500W/1800W
Center Rear Element Burner Power4800/2800W
Center Rear Element Burner Size12in.
Right Rear Element Burner Power2500W/1800W
Carton Height7.75"
Cutout Depth19.31"
Cutout Height0.35"
Cutout Width33.06"
Depth21.31"
Height3.13"
Width36.31"
Gross Weight63 lbs.
Carton Depth26.0"
Carton Width39 1/2"
Net Weight0.0 lbs.
Carton Depth Inch25.5
Carton Height Inch7.75
Carton Width Inch39.5
