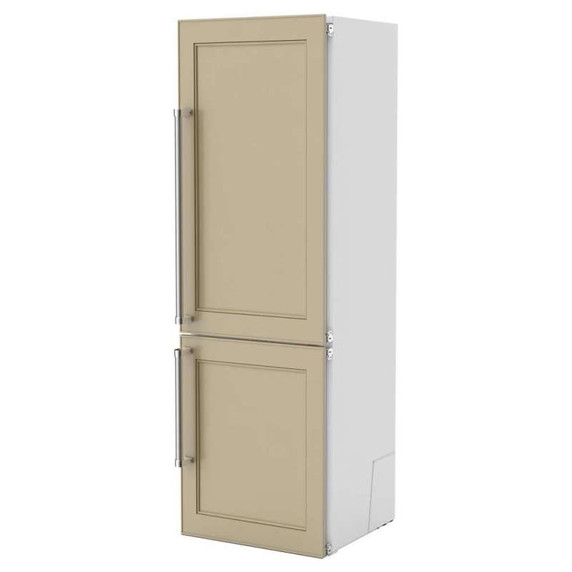

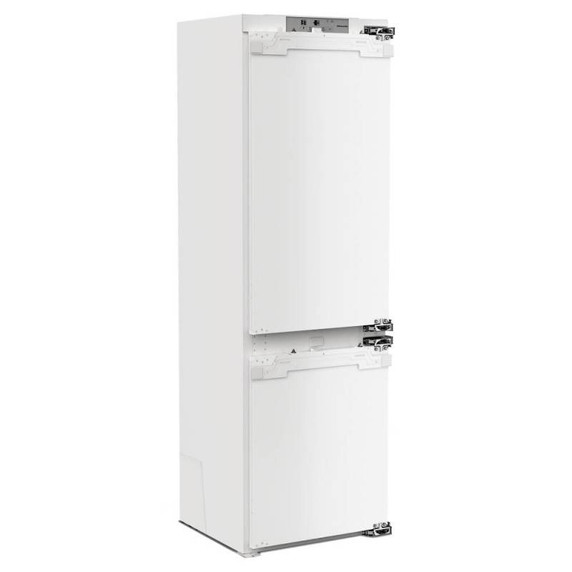

Kitchenaid® 8.84 Cu. Ft. 22 Built-In Panel-Ready Bottom Mount Refrigerator KBBX102MPA


Whirlpool, Maytag, KitchenAid Boxing Week in July - Kitchen, June 20 - July 10, 2024. Save $150 when you purchase 2 qualifying Whirlpool®, Maytag®, or KitchenAid® kitchen appliances. Save $300 on 3 or more!

(You save $1,200.00 )
Please contact us for availability
Hurry! Only left
Energy Star Logo
Colour: Panel Ready
Control Type: Electronic
Dispenser Type: N/A

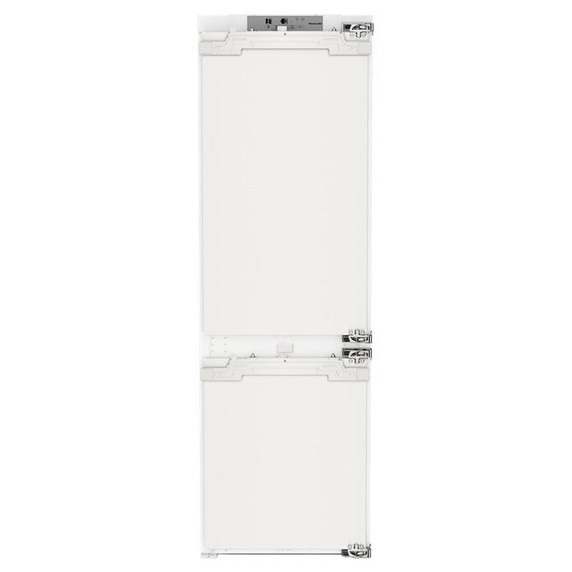

The space-saving design of this 22 Built-In Bottom Mount Refrigerator makes room for the way you create, inside and out. Adjustable shelves, slide-out bins and temperature-controlled drawers let you customize storage for fresh and frozen ingredients. Panel-Ready Design creates a seamless look with kitchen cabinetry.
Top 3 Features

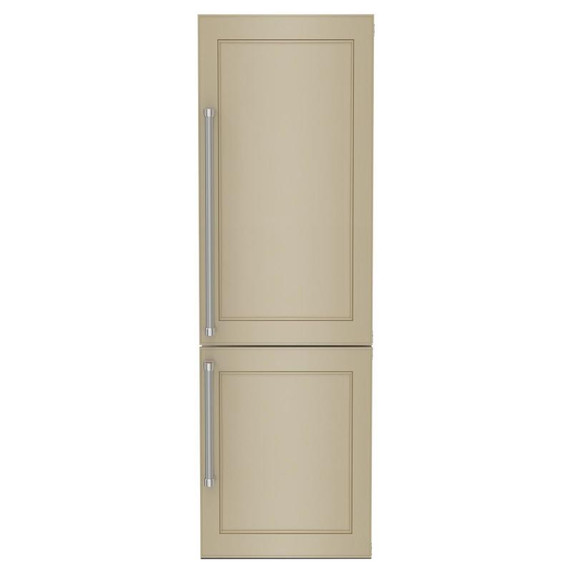

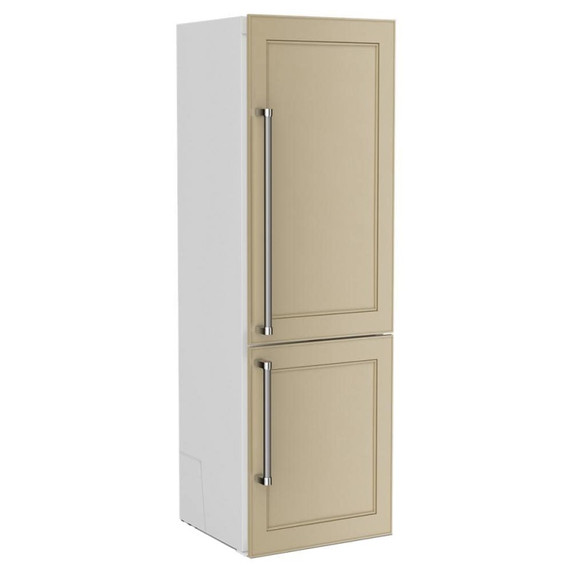

Panel-Ready DesignAllows the refrigerator to be customized to match surrounding cabinets with custom panels and handles (Custom panels and handles not included)

ExtendFresh™ Temperature Management SystemHelps keep ingredients fresh by using sensors that continually adjust temperatures in the refrigerator and freezer by monitoring the airflow between them.

FreshChill™ Temperature-Controlled DrawerMakes it easy to customize storage temperatures for different types of ingredients, helping to maintain freshness. Simply turn the dial to choose from presets for Meat and Fish, Dairy or Produce.

Additional Features

Humidity-Controlled CrisperProvides dedicated space for produce with the ability to adjust humidity levels. Set the dial to Vegetables for high humidity that helps maintain crispness; Fruit for low humidity that helps maintain freshness; or Mixed to balance the needs of both.

Slide-Away ShelfAdjusts to accommodate items of different heights. It can be used as an additional full-depth shelf or the front half can be pushed back to make room for tall items like pitchers and carafes below.

Max CoolTemporarily drops the refrigerator to the coldest setting, helping to chill groceries, beverages and prepped ingredients. After 6 hours, the temperature will automatically reset to the previous setting.

Max FreezeDrop freezer temperature to the coldest level so frozen goods can reach optimal temperatures. After 26 hours, the temperature will automatically be restored to the previous setting.

Wine and Beverage HolderFeatures a notched design that holds up to five standard beverage bottles such as wine, champagne and seltzers. The holder sits against the back of the shelf, so it's out of the way when not needed, and can easily be moved to any of the shelves.

Sliding freezer trayKeeps frequently used items like frozen fruit for breakfast smoothies or homemade frozen sauces for quick dinners in reach. The tray slides out and in, making it easy to find and grab even small containers in the back.

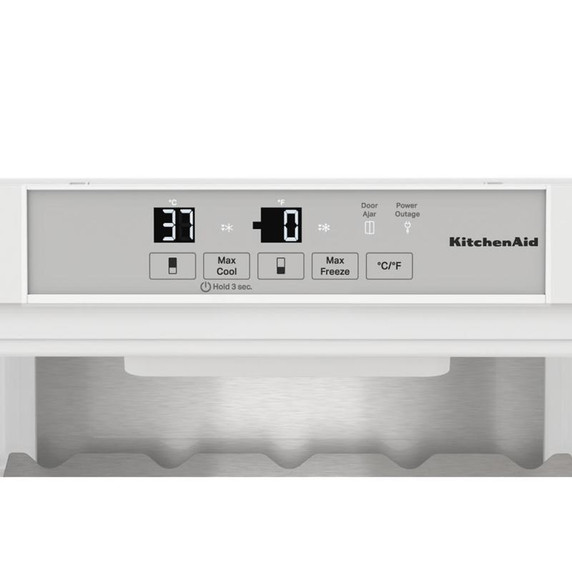

Touchpad ControlsPut all refrigerator functions at your fingertips, making it easy to see and adjust settings. The lighted control panel displays current refrigerator and freezer temperatures and other status alerts.

LED Interior LightingIlluminates the inside of the refrigerator and freezer, providing better visibility. Unlike incandescent bulbs, LED lights use less energy, last longer and require little maintenance.

Reversible Door SwingCreates versatile installation options by allowing the refrigerator door to be adjusted to open from either the right or left side.

Energy Star® CertifiedAssures that this refrigerator is designed to use less energy, help save money on utility bills and help conserve our natural resources

Stainless Steel Panel Kit for Left Swing Door (KBXL102MSS Sold Separately)Coordinates with the full suite of stainless steel KitchenAid® Appliances, providing a sleek alternative to custom panels. Kit includes stainless steel front panels and handles for both the refrigerator and freezer doors. (Kit Number KBXL102MSS sold seperately)

Stainless Steel Panel Kit for Right Swing Door (KBXR102MSS Sold Separately)Coordinates with the full suite of stainless steel KitchenAid® Appliances, providing a sleek alternative to custom panels. Kit includes stainless steel front panels and handles for both the refrigerator and freezer doors.(Kit Number KBXR102MSS sold seperately)




Energy Star QualifiedYes

Cee TierNo

Energy Rating Kwh Year393

Star K CertifiedNo




Control LocationInterior Up Front

Control TypeElectronic

Door Ajar Open AlarmYes

Max Cool Fast CoolYes

Water Filter Indicator ResetNo

Control LockoutYes

Sabbath ModeNo


Door FinishSmooth

Door StyleFlat

Hidden HingeYes

Cabinet FinishSmooth

Number Of Doors2

Reversible DoorYes

Base Grille ColorWhite

Cabinet ColorWhite

Freezer Compartment


Freezer Drawer Basket1 Full Width Lower Plastic; 1 Full Width Upper Plastic

Freezer TypeStandard

Door TypeSwing

Freezer Number Of Shelves1

Shelves1 Fixed Full Width Plastic


Fingerprint ResistantNo

Country Of OriginItaly

Extended Service Plan ParentEW09IW1Y


Installation ConfigurationBuilt-in


Type Of RefrigeratorBottom Freezer


Counter DepthYes

Cooling TypeSingle Evaporator


Dispenser TypeN/A

Refrigerator Compartment

Humidity Controlled DrawersYes

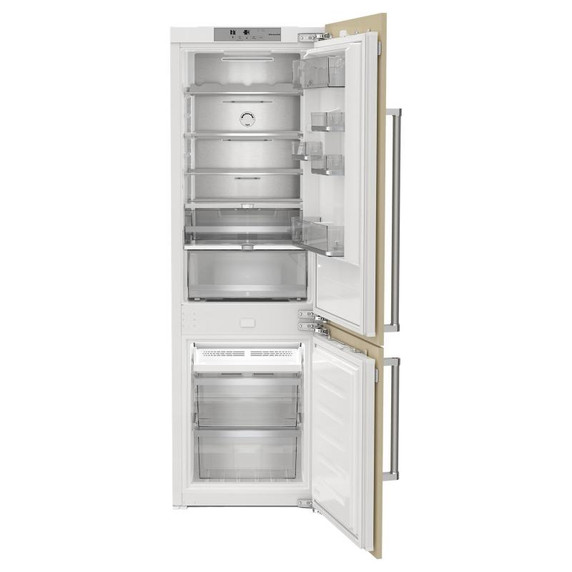

Number Of Interior Shelves3

Shelf SupportsMolded

Temperature Controlled Drawers1 Full Width

Conventional Shelves1 Fixed Full-Width Glass; 1 Flip Glass

Door Bins3 Fixed Partial-Width; 1 Fixed Full-Width; 1 Dairy

AHAM Volumes And Shelf Area

Freezer Volume Cu Ft2.39

Refrigerator Volume Cu Ft6.45

Total Volume Cu Ft8.8


Carton Depth23.94"

Carton Height72.44"

Carton Width23.5"

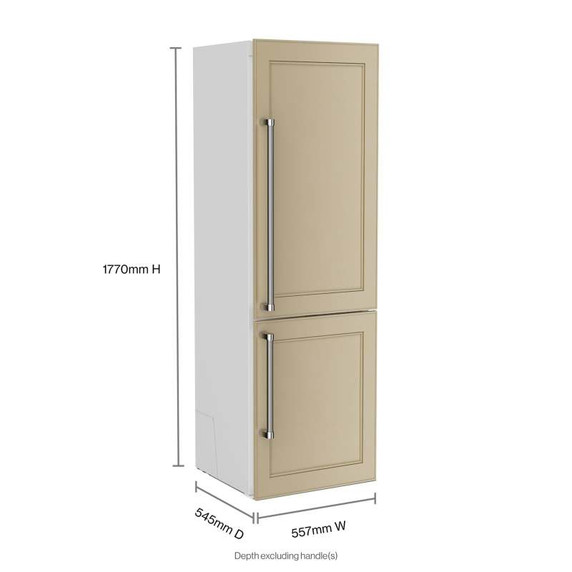

Depth Closed Excluding Handles21.44"

Gross Weight136 Kg.

Net Weight132.3 Kg.

Cabinet Width21.94"

Cutout Height69.94"

Cutout Width22.06"

Height To Top Of Cabinet69.69"



Popular Height70 Inch Tall

Popular Width24 Inch Wide
