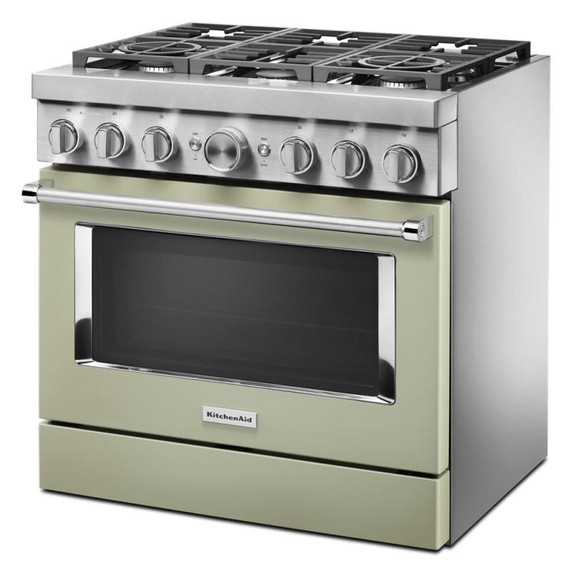

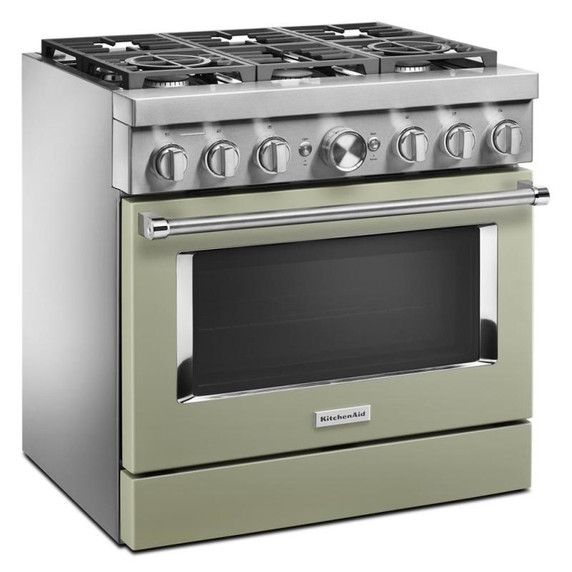

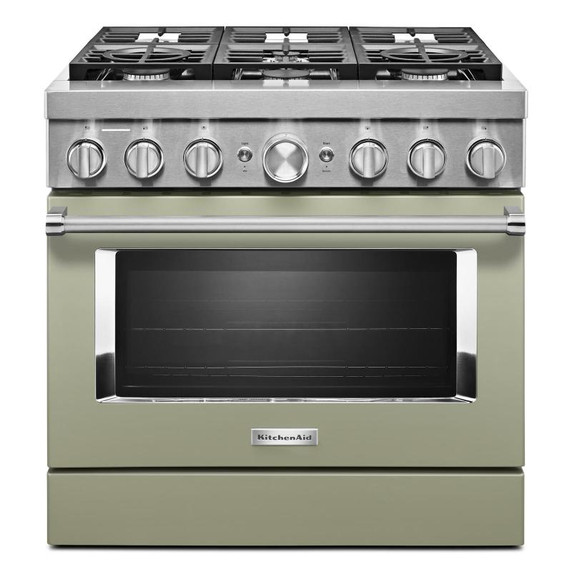

KitchenAid® 36'' Smart Commercial-Style Dual Fuel Range with 6 Burners KFDC506JAV
KitchenAid Cook Up The Savings Event, June 1 – 21, 2023. Save $300 when you purchase 3 qualifying KitchenAid Kitchen appliances, save $400 when you purchase 4, save $500 when you purchase 5 or more.
Dual Fuel RangeSatisfies the needs of the most demanding cooks by combining the precise control of a gas cooking surface with the even baking, roasting and broiling of an electric oven.

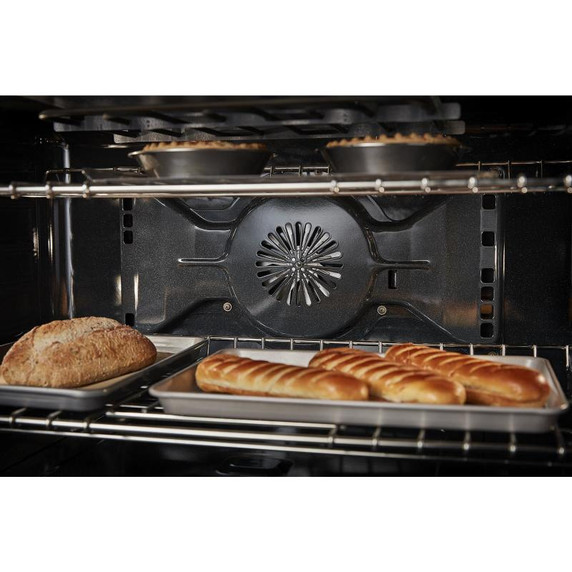

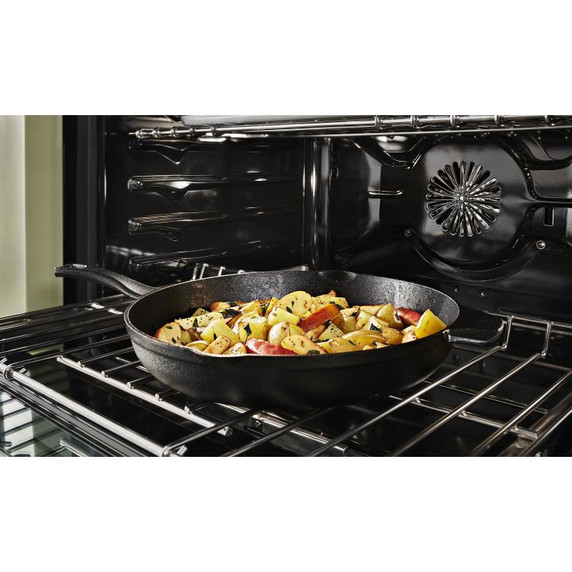

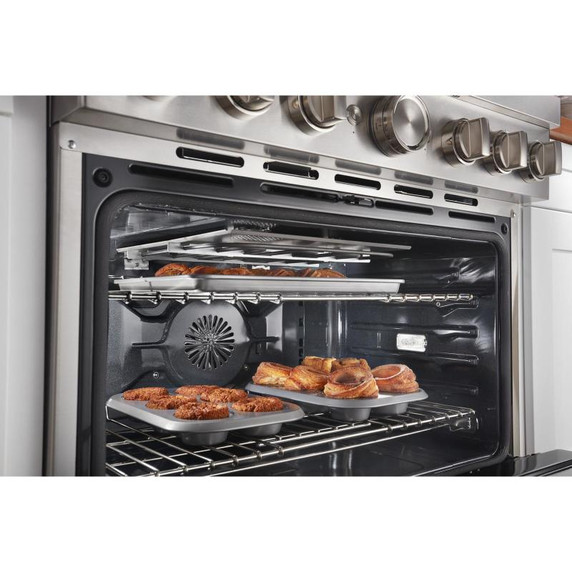

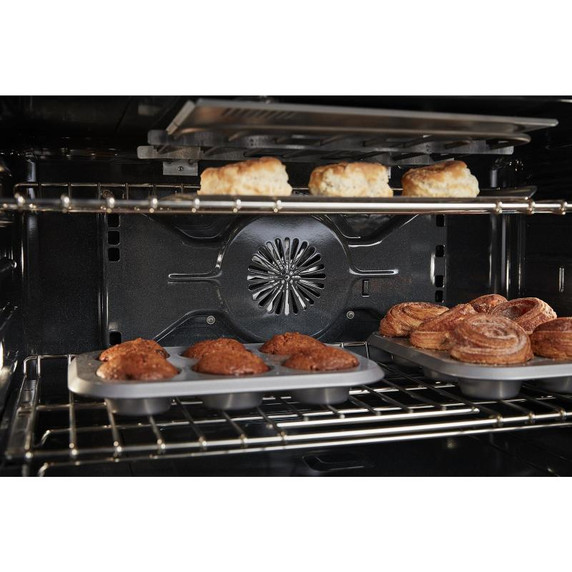

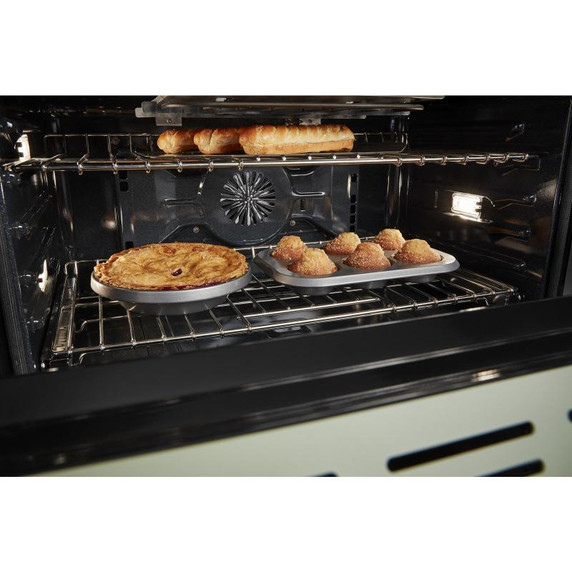

Even-Heat™ True ConvectionFeatures a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.
Smart ApplianceLets you control the oven with your Google Assistant device* to stay hands on or hands off. Use the KitchenAid™ App to preheat, proof, bake and roast, save custom cooking instructions for favorite recipes and more.

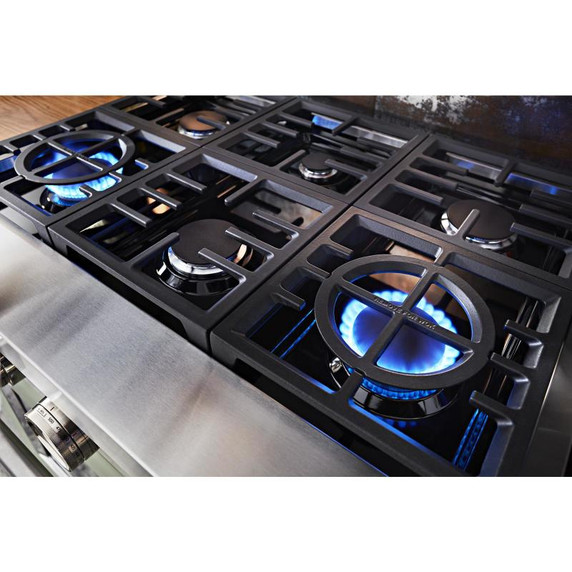

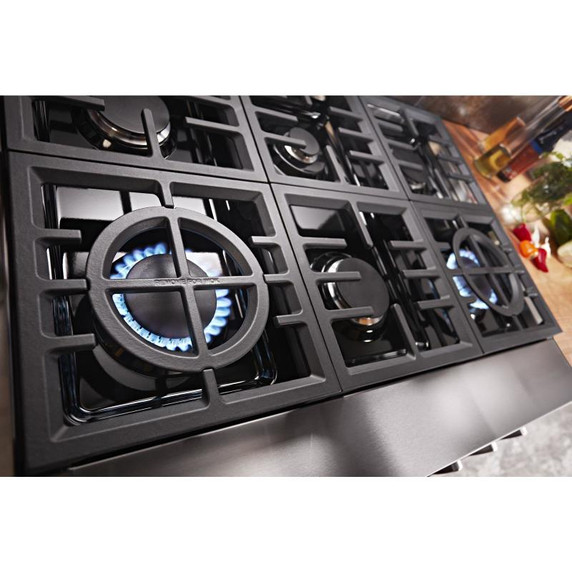

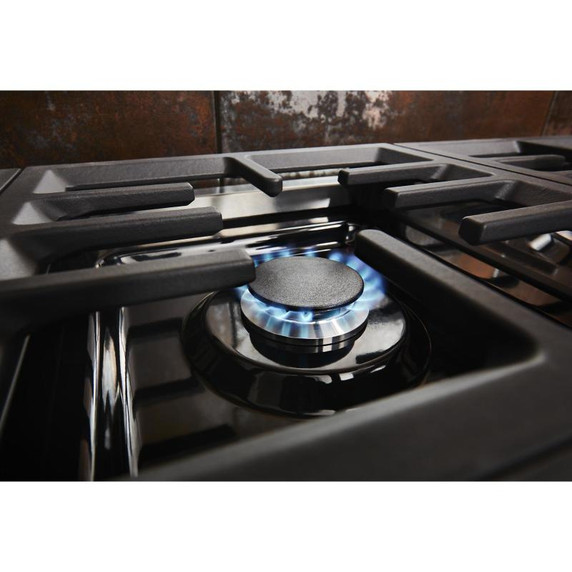

Two 20,000 BTU Ultra Power™ Dual-Flame BurnersGive you precise control of powerful highs, steady lows and the wide range of temperatures in between. The versatile, dual-flame design lets you sear, sauté, simmer and sizzle, all on the same burner.

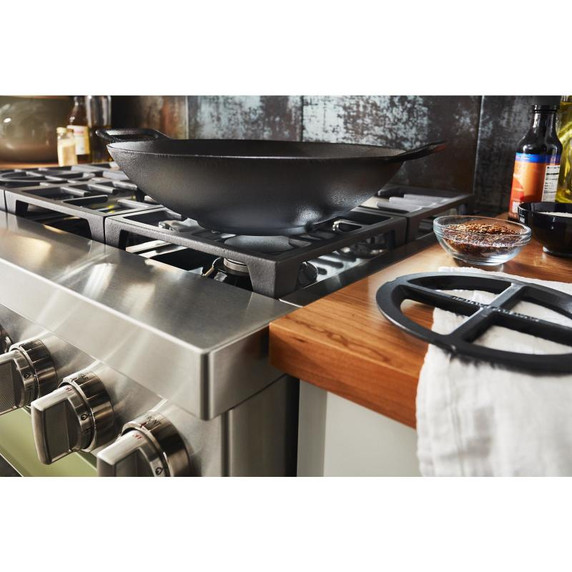

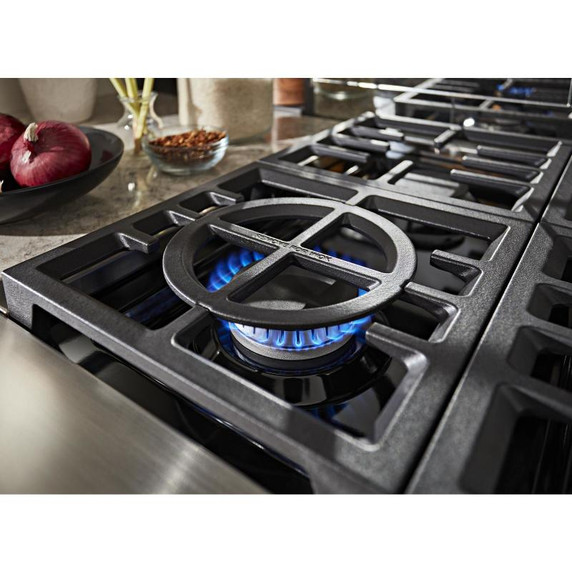

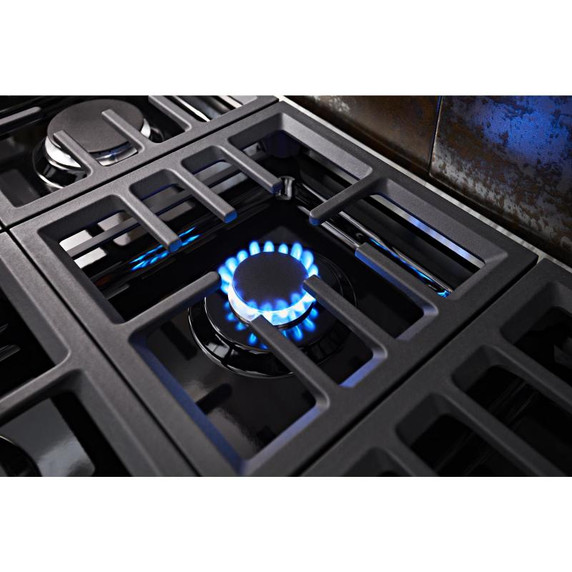

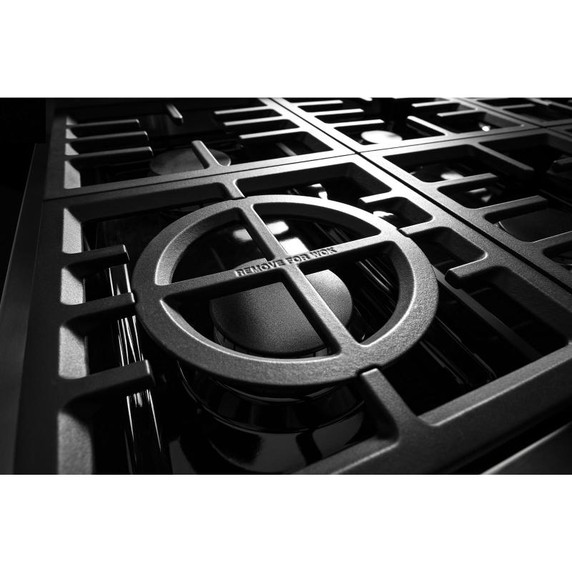

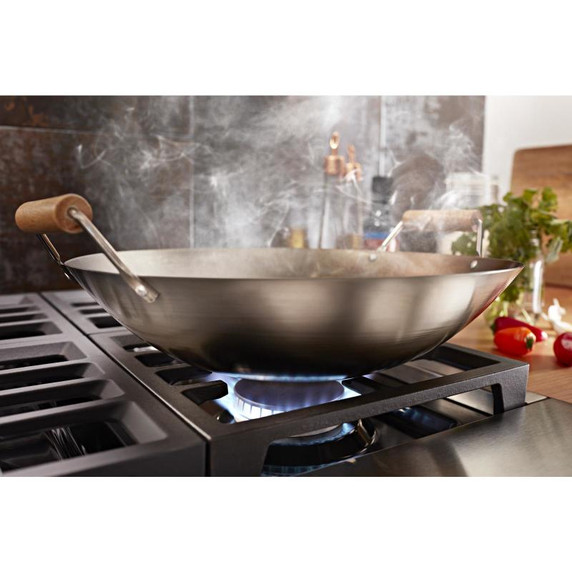

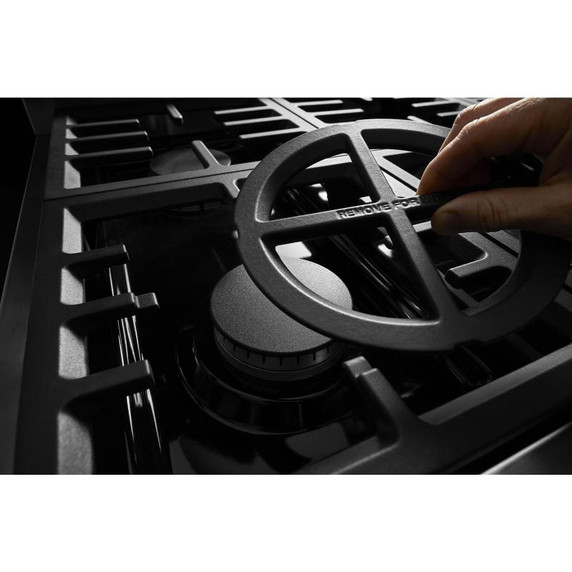

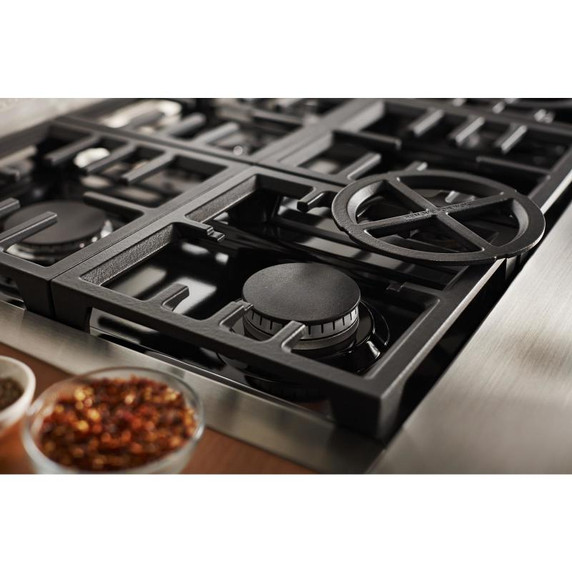

Three-Level Convertible GratesWith removable inserts match the heat to your technique. Leave the insert level for high-heat searing and sautéing, flip it over to lift your pan above the flame to simmer and melt or remove it to nestle a round-bottom wok in the flame for stir-fry.

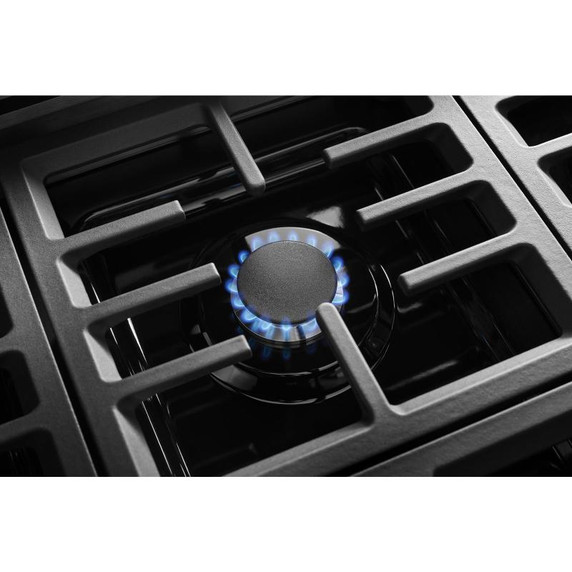

5,000 BTU Simmer & Melt BurnerWith a low flame sized for small saucepans lets you reach and maintain low temperatures. Simmer sauces until they look, feel and taste just right and melt even delicate ingredients.

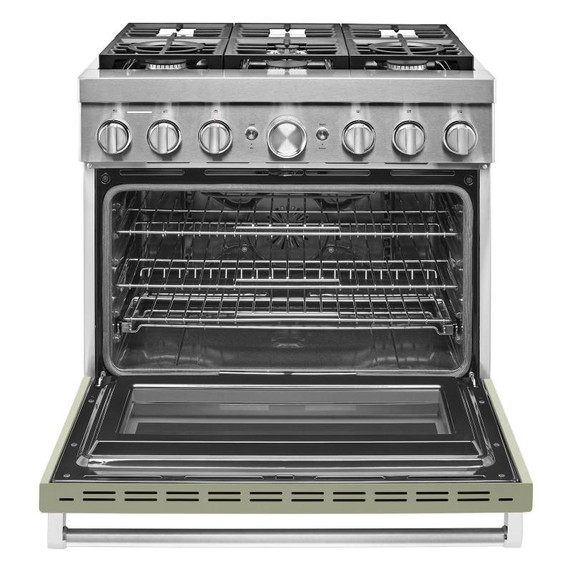

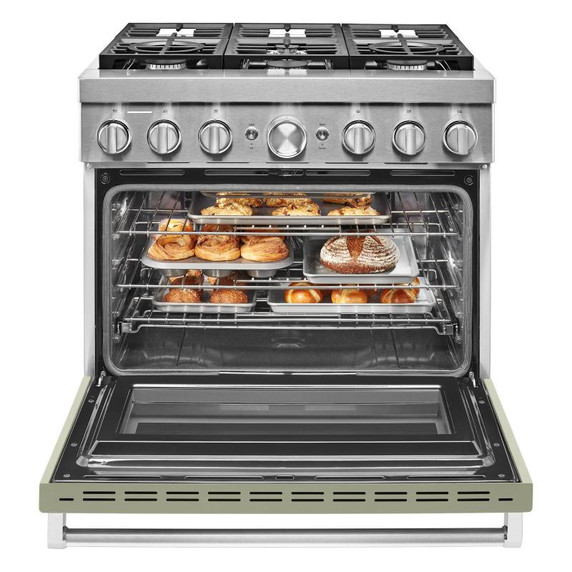

5.1 Cu. Ft. CapacityEasily cook large meals with a 5.1 Cu. Ft. Capacity oven that includes two racks and a separate Broiler Drawer.

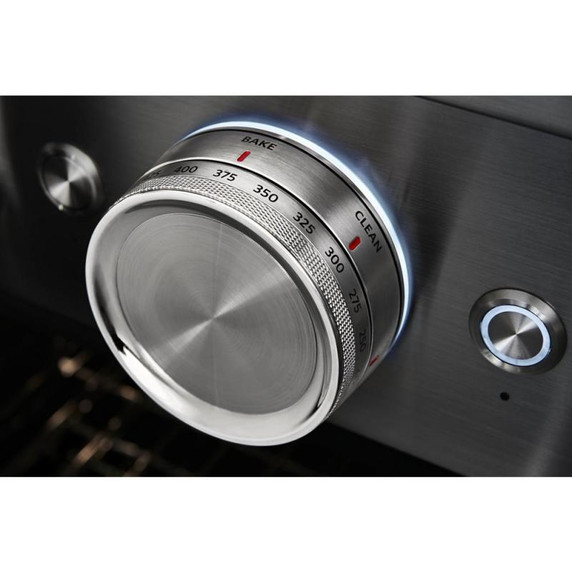

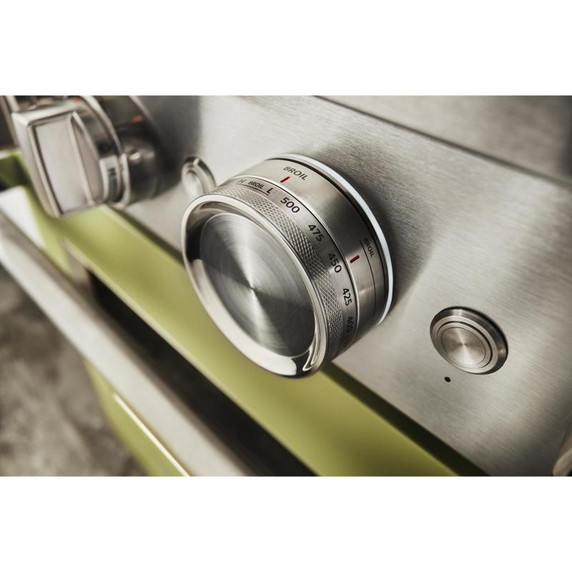

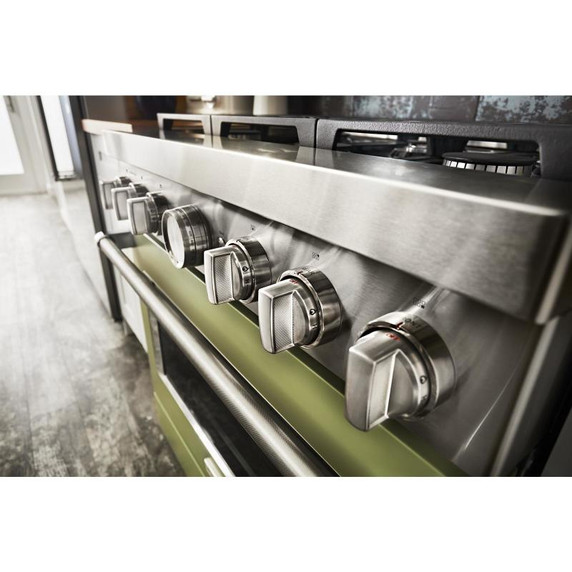

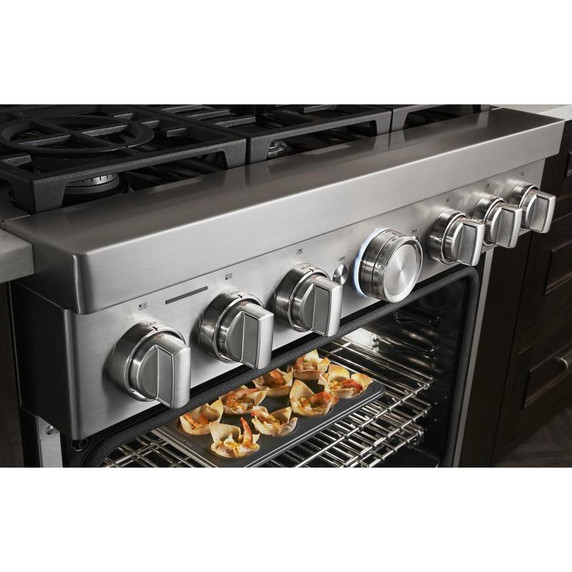

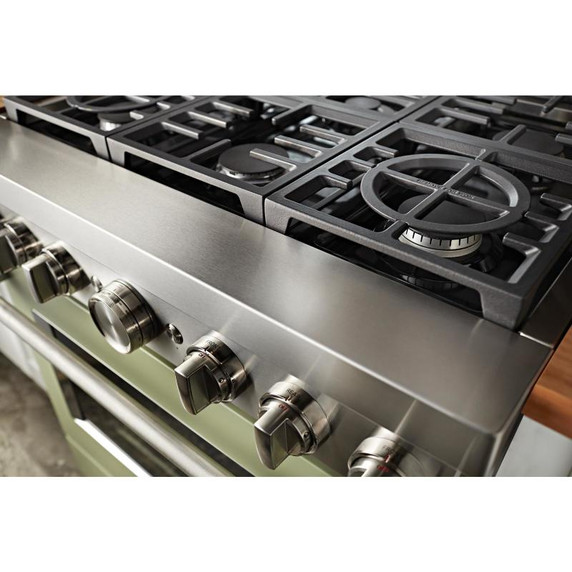

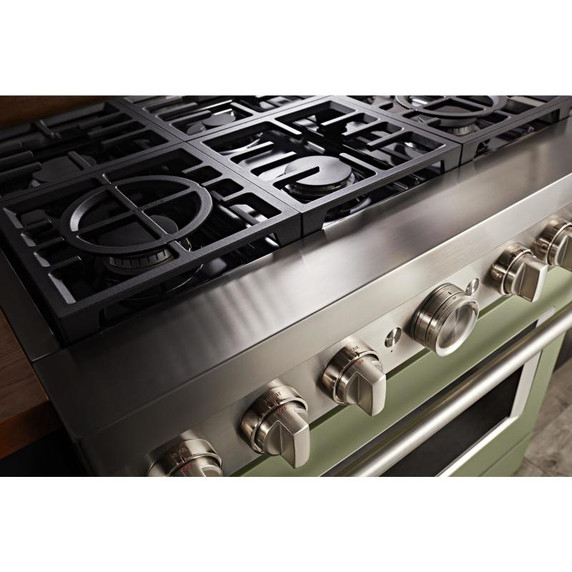

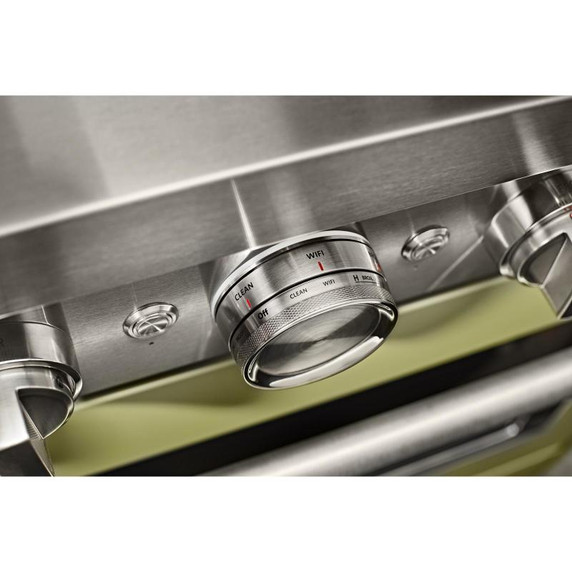

Dual-Concentric Oven KnobProvides one-handed control of both oven mode and temperature. Two knobs in one let you first choose Bake, Broil or Convection, then select the temperature. Responsive backlighting confirms settings are correct or alerts you to needed adjustments.

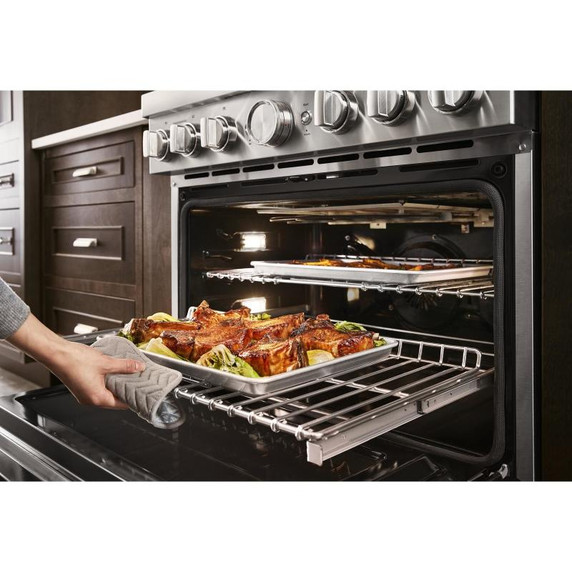

SatinGlide™ Roll-Out Extension RackMakes it easier to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.
EasyConvect™ Conversion SystemAutomatically adjusts conventional baking temperatures to their convection equivalents from the KitchenAid™ app, making it effortless to use convection with recipes of all kinds.
Three 15,000 BTU BurnersDeliver the high-heat you need for successful searing, sautéing, stir-frying and quickly bringing large stock pots to a rolling boil.

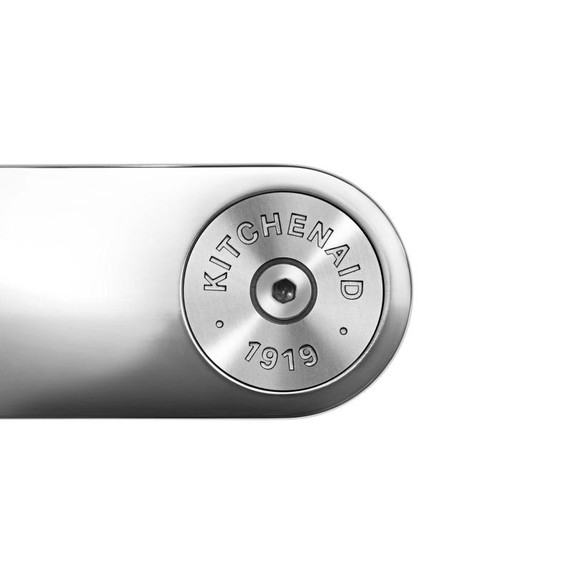

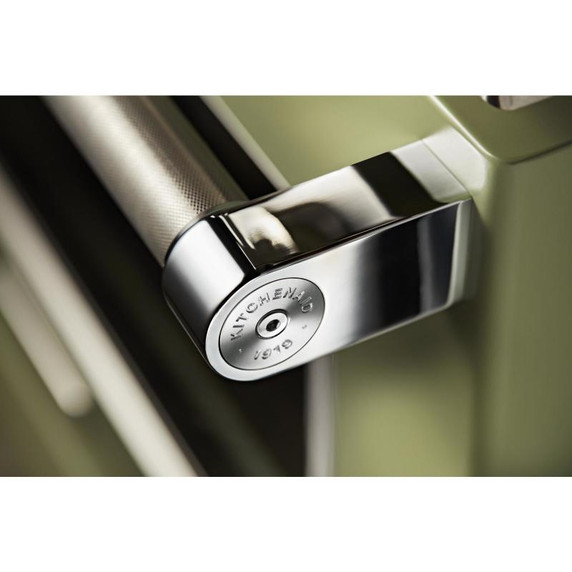

KitchenAid® Handle Medallion Kit (sold separately)Lets you change the color of your commercial-style range handle medallions to add a custom accent. Available in Silver, Dark Blue, Bronze, Black, Copper, Red, New Gold, and Mascarpone. Each kit includes two medallions and a 1/8" hex allen wrench for easy replacement (sold separately)
Star-K CertifiedApproves the oven for use on the Sabbath and other religious holidays when Sabbath Mode is being used.
Star K CertifiedYes
Energy Rating (kWH/year)370
Handle ColorStainless Steel
Oven Window SizeLarge
Handle TypeTowel Bar
Door TypeMetal & Glass
Power Cord IncludedNo
Cooktop Surface ColorBlack
Cooktop Control LocationFront
Cooktop Control TypeKnobs
Center Rear Element-Burner Power5000 BTU
Right Rear Element-Burner TypeSealed Burner
Cooktop Control Knob ColorStainless Steel
Cooktop ConfigurationAll Burners
Cooktop Control Knob TypeMetal
Grate DetailsDishwasher Safe,Individual,Matte Finish,Porcelain Coated Cast Grates
Ignition TypeFlame-Sensing™ Re-ignition
Left Front Element-Burner TypeDual-Stacked Burner
Right Front Element-Burner TypeDual-Stacked Burner
Number of Cooking Element-Burners6
Number of Grates6
Center Front Element-Burner Power15,000 BTU
Center Front Element-Burner TypeSealed Burner
Center Rear Element-Burner TypeSealed Burner
Cooktop Element StyleSealed Burners
Left Rear Element-Burner TypeSealed Burner
Left Front Element-Burner Power20,000 BTU/14,000 LP
Left Rear Element-Burner Power15,000 BTU/11,000 LP
Right Front Element-Burner Power20,000 BTU/14,000 LP
Right Rear Element-Burner Power15,000 BTU/11,000 LP
Configuration and Overview
Natural Gas ConvertibleYes
Power Outage CompatibleYes
Hot Surface Indicator LightNo
Heating Element On Indicator LightNo
LP ConvertibleYes - Kit Included
Power On Indicator LightYes
Automatic Convection Conversion Temperature AdjustYes
SelectionAudible Signal,Bake,Broil,Cancel/Off,Convect Modes,Easy Convect Baked Goods,Easy Convect Meats,Easy Convect Pizza,Keep Warm Setting,Proofing,Sabbath Mode,Temperature Probe
Oven Cleaning TypeSelf-Cleaning
Oven Control Knob ColorStainless Steel
Oven Control Knob TypeMetal
Bake Element Power3000W
Number of Oven Lights3
Oven Light TypeHalogen
Oven Interior Height(IN,inches)14.3
Number of Oven Racks3
Rack Guide TypeMolded
Number of Rack Guides6
Broiler Element Power5500W
Convection Element TypeTrue-Bow Tie
Oven Rack TypeGliding Roll-Out,Standard (Both)
Hidden Bake ElementYes
Oven Light Switch LocationOven Control
Oven Control LocationFront
Oven Control TypeKnobs
Oven Cooking SystemTrue Convection
Broiler LocationTop Center
Cooktop Surface MaterialPorcelain Coated Steel
Automatic Door LatchYes
Convection Element Power (watts)1,600
Oven Automatic Shut-OffYes
Oven Interior Depth(IN,inches)16.300
Oven Interior Width(IN,inches)29.900
Oven ConfigurationSingle Oven
ConnectivityAmazon Alexa,Android,Google Assistant,iOS
Works WithWiFi,App,Remote Access,Voice Controlled
Fuel TypeDual Fuel

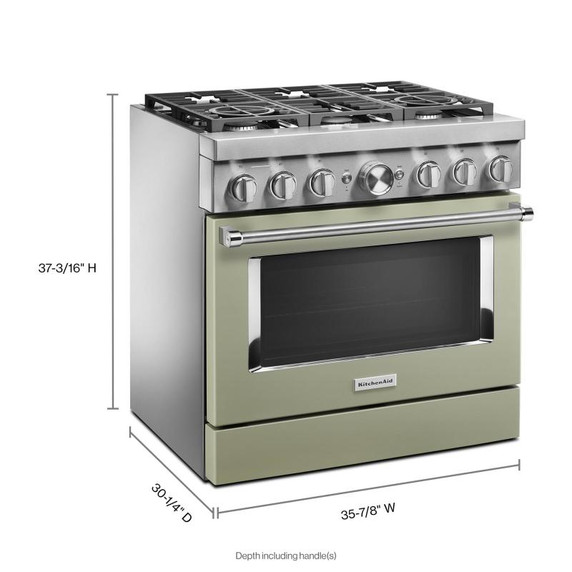

Carton Depth35 1/2"
Carton Height47 5/8"
Carton Width41 13/16"
Depth Closed Excluding Handles27 3/4"
Depth Closed Including Handles30 1/4"
Depth With Door Open 90 Degree46 1/2"
Gross Weight444 Kg.
Net Weight389.0 Kg.
Capacity (cubic feet)5.10
