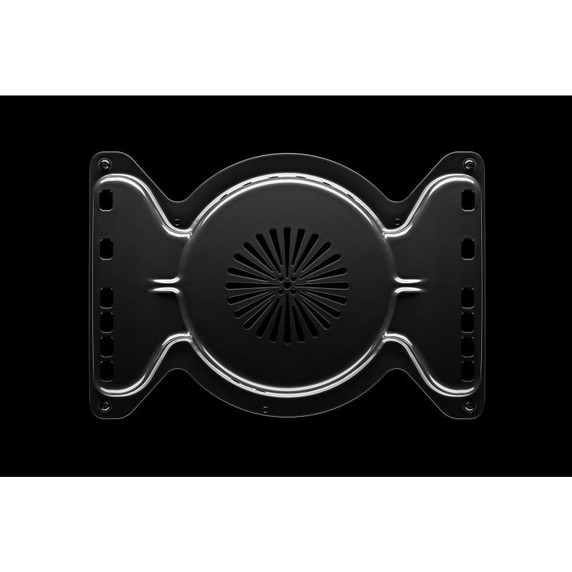

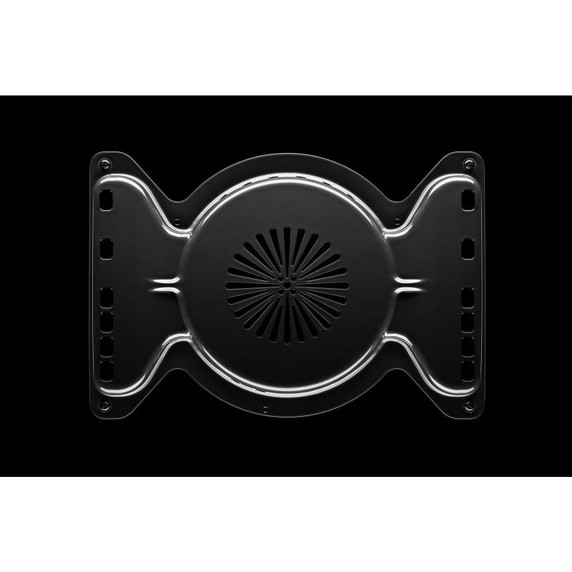

Even-Heat™ True ConvectionProduces flawless results. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature.
Steam RackOffers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.

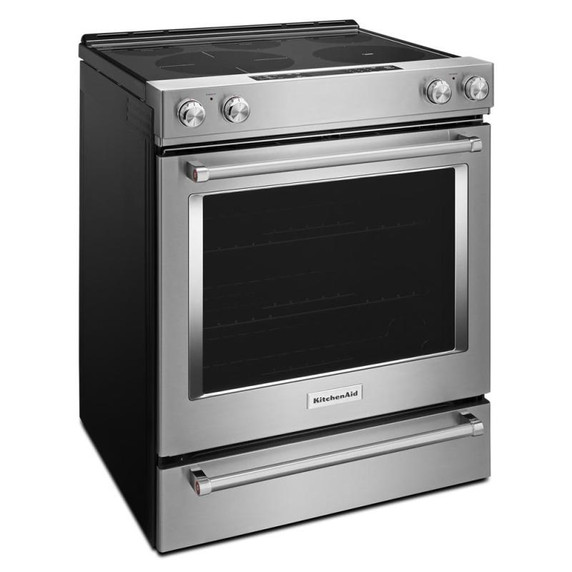

6.4 cu ft CapacityThis electric slide-in range provides a large cooking capacity that easily handles multiple dishes at once.

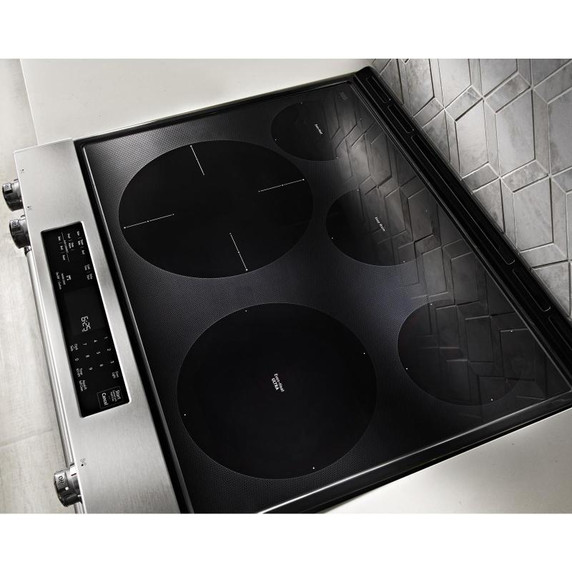

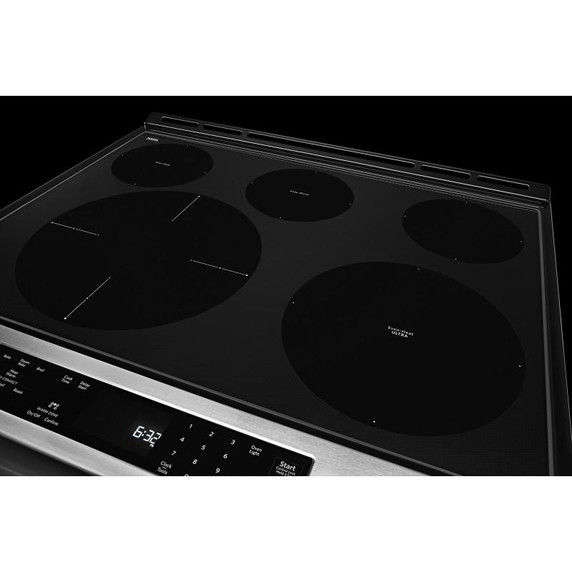

5 cooking elements including a warm zoneProvides five independent cooking surfaces that allow you to do more on your range. It features a triple cooking zone of 6, 9 and 12 inches, one 10 inch zone and two 6 inch cooking zones, plus a dedicated warming zone.
EasyConvect™ Conversion SystemTakes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.
FIT GuaranteeIs our promise to flawlessly fit slide-in ranges designed for an existing cutout of 30" width, countertop depth of 24"-25", cabinet depth of 23"-24" and countertop height of 36".
Aqualift®Cleans your oven in less than an hour without odours and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.

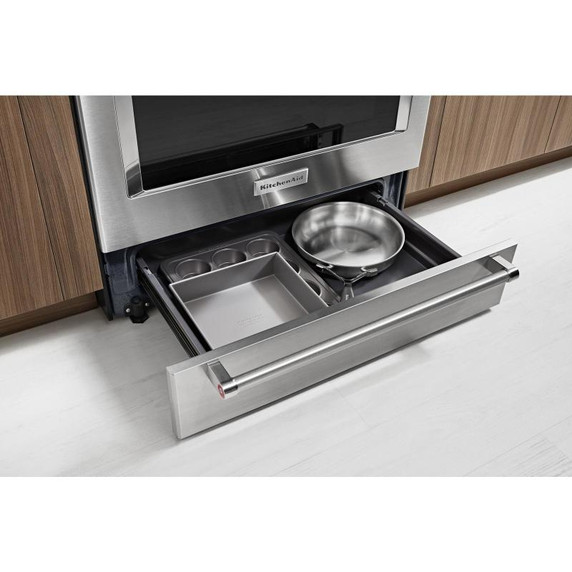

Storage DrawerAdds additional storage space that’s perfect for pots, pans and baking sheets.

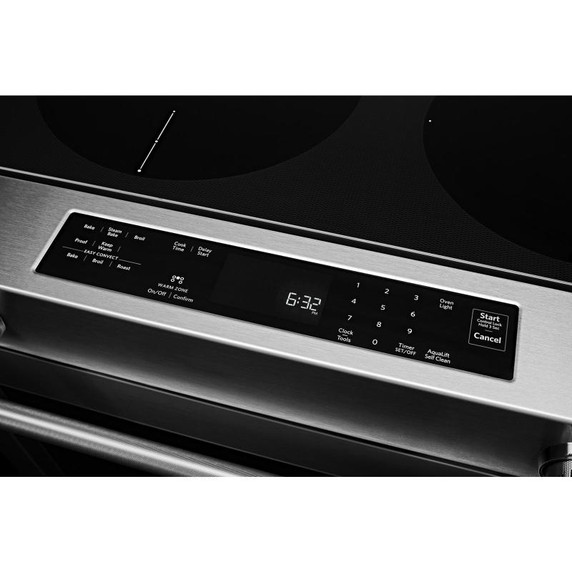

Glass Touch ControlsOffer an intuitive, easy-to-use touch screen experience.

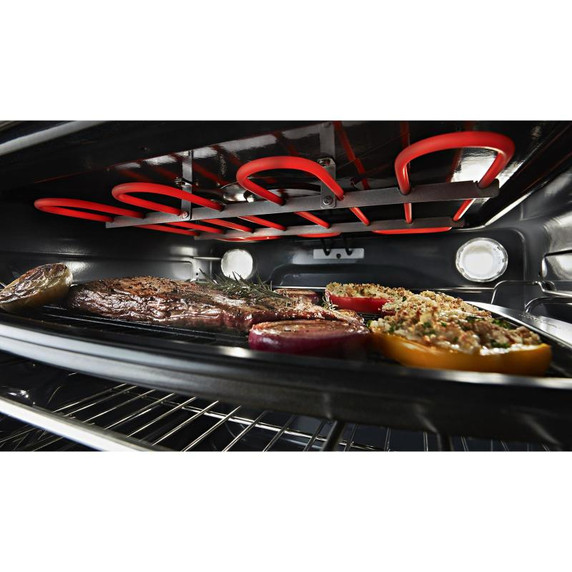

4000W Broil FeatureProvides a variable temperature option, giving you complete control while you broil.
Side Trim Accessory KitThis optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.
Country Of OriginUSA
Extended Service Plan ParentEW08IW1Y
Dishwasher SafeNo
Product To Product PairsKVUB400GSS
Optional AccessoriesW10655450, W10655449, W10731887, W10115773, W10285447, W10675028, W10675026, W10731886, W10731885, W10675027, W10655448
ULYes
ADA CompliantYes
Energy Rating Kwh Year650
Handle MaterialMetal
Handle ColorStainless Steel
Handle TypeTowel Bar
Drawer TypeStorage Drawer

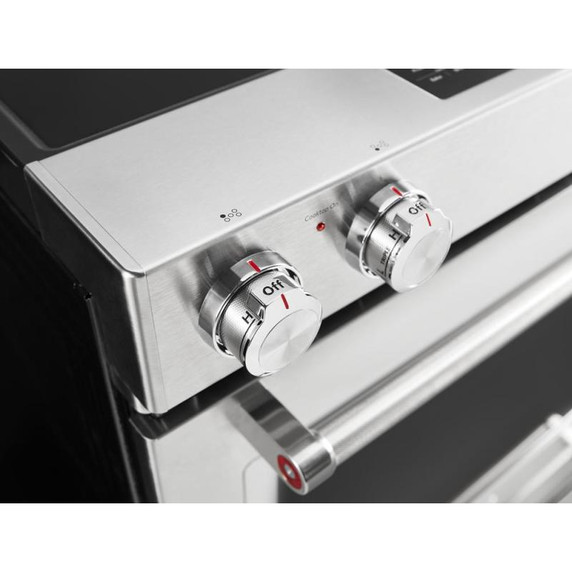

Knob TypeWeighted
Knob ColorStainless Steel
Electronic Display TypeDigital
Power Cord IncludedYes
Volts240
Amps40
Heating Element On Indicator LightYes
Automatic Convection Conversion Temperature AdjustYes
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
SelectionSteam Bake; Proofing; Keep Warm Setting; Cook Time Indicator; Delay Start; Warm Zone; Clock; Sabbath Mode
Oven DoorMetal & Glass
Oven ConfigurationSingle Oven
Range ConfigurationSlide-In
Cooktop Surface ColorBlack
Cooktop Element StyleCeran
Left Rear Element Burner Size6in.
Right Rear Element Burner Power1200W
Right Rear Element Burner Size6in.
Right Rear Element Burner TypeStandard
Number Of Cooking Element Burners5
Center Rear Element Burner Power100W
Center Rear Element Burner TypeWarming
Left Front Element Burner Size12in./9in./6in.
Left Front Element Burner TypeTriple
Right Front Element Burner Power3200W
Right Front Element Burner Size10in.
Right Front Element Burner TypeHigh Output
Left Rear Element Burner TypeHigh Output
Left Front Element Burner Power3000W/1950W/1050W
Left Rear Element Burner Power1300W
Broiler LocationTop of Oven
Convection FunctionsBake; Broil; Roast
Hidden Bake ElementYes
Interior ColorGrey
Number Of Oven Lights2
Oven Cooking SystemConvection
Oven Light TypeIncandescent
Convection Element TypeFan
Cooktop Surface MaterialCeramic Glass
Oven Control TypeElectronic Touch
Broiler Element Power4000W
Convection Element Power Watts3,200

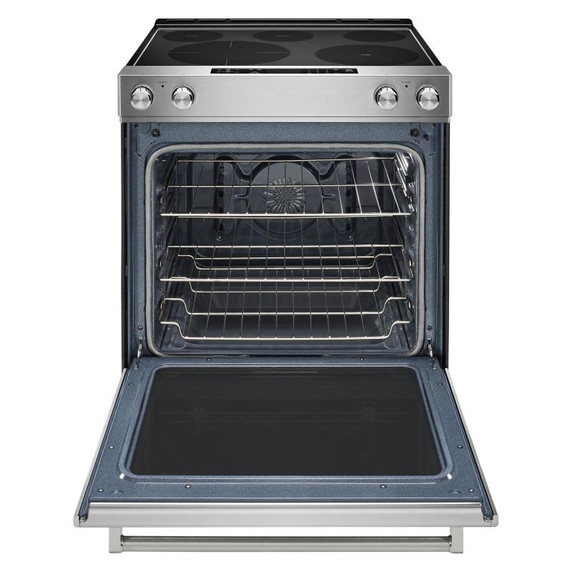

Number Of Oven Racks3
Number Of Rack Guides7
Bake Element Power3600W
Oven Interior Depth In Inches20.63
Oven Interior Width In Inches24.13
Oven Rack Type1 Max Capacity, 1 Standard, 1 Steam Rack
Oven Cleaning TypeAquaLift® Self-Clean
Fuel TypeElectric
Size In30
Range TypeSlide-in
Carton Depth30.56"
Carton Height43.5"
Carton Width31.5"
Depth Closed Excluding Handles26.38"
Depth Closed Including Handles28.88"
Gross Weight200 Kg.

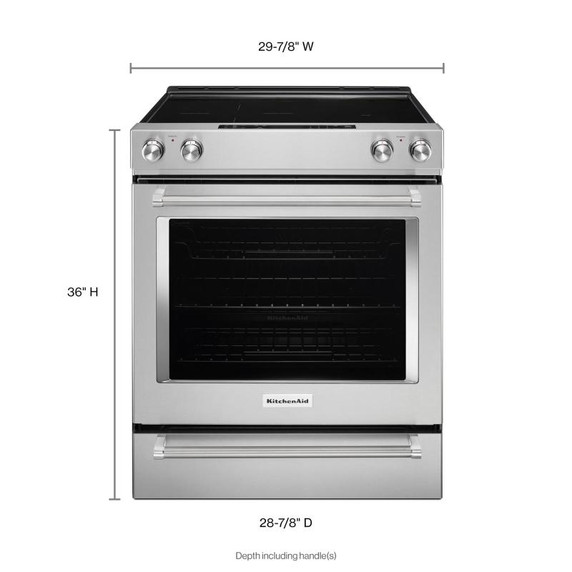

Height36.0"
Width29.88"
Capacity FT3 (cubic feet)6.40
Depth28.88"
