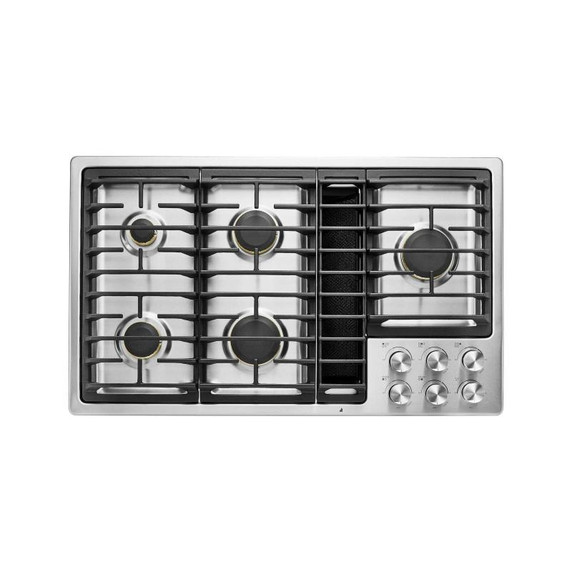

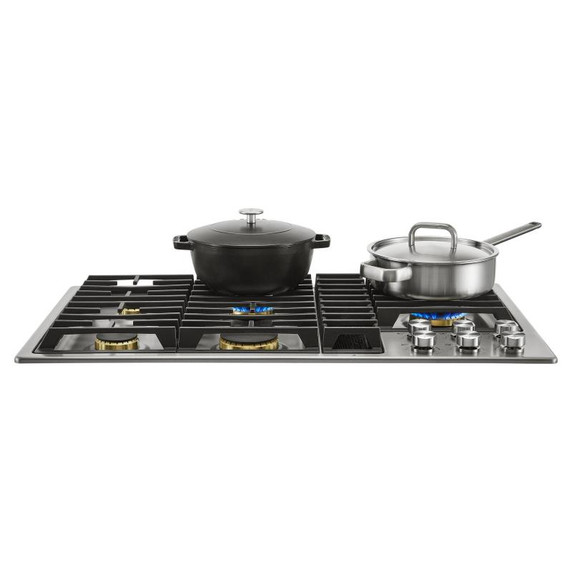

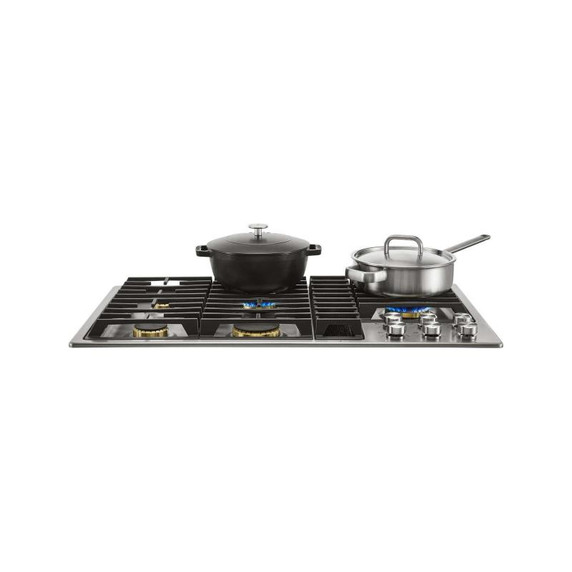

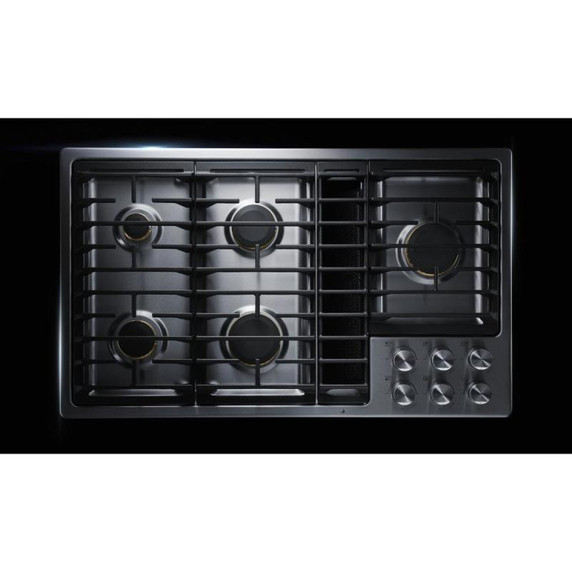

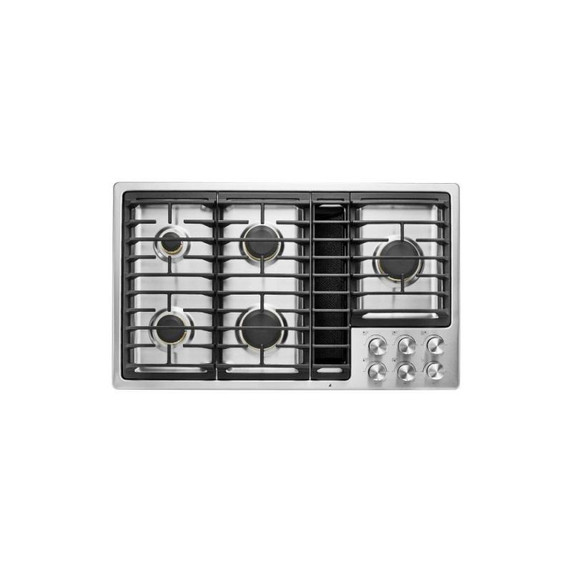

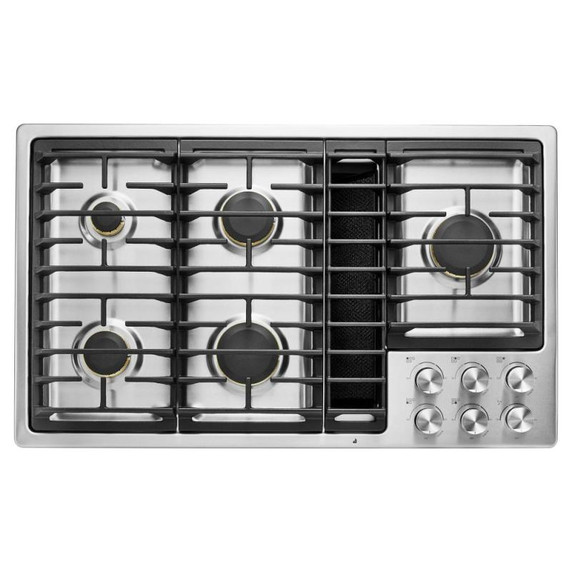

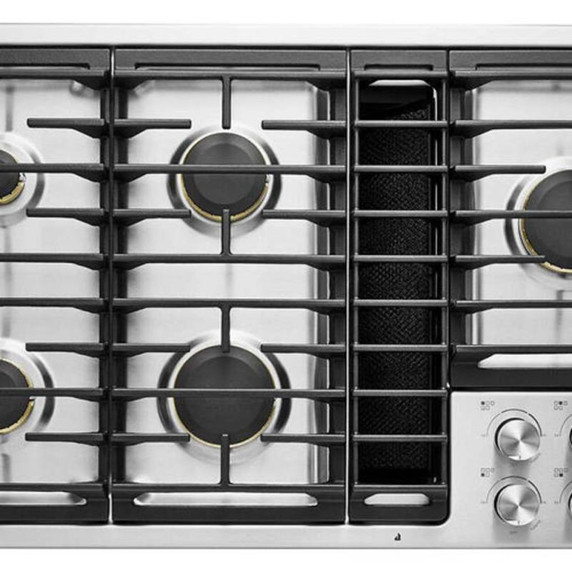

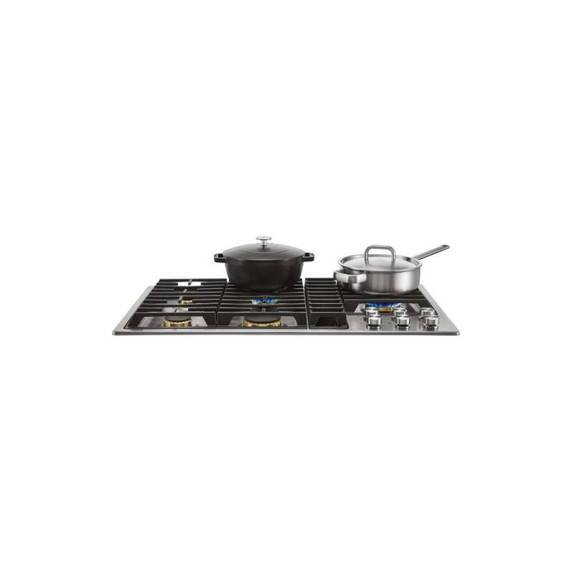

Jennair® 36” JX3™ Gas Downdraft Cooktop JGD3536GS
JennAir Luxury Redefined Event, November 1 - December 31, 2024. Save 15% when you purchase 2 or 3 qualifying JennAir® products. Save 20% when you purchase 4 or more qualifying JennAir® products!

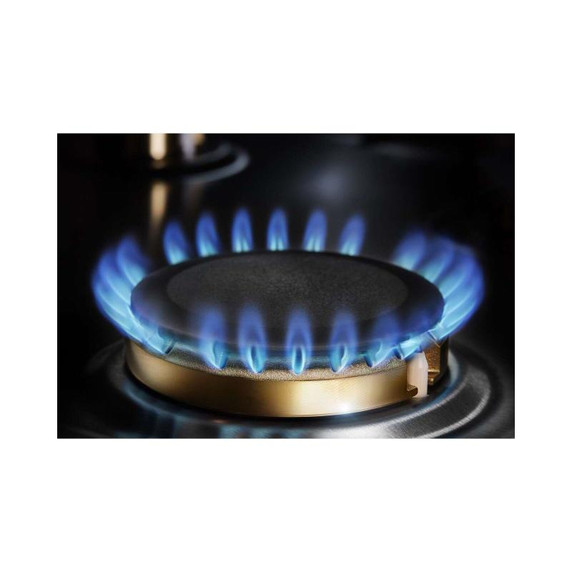

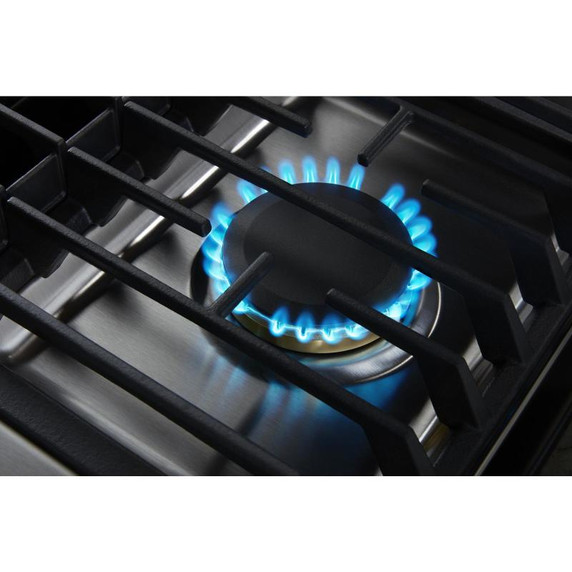

17,000 BTU Ultra-High Output BurnerEnjoy the robust heat necessary for high-powered cooking techniques, whether searing a steak, stir-frying vegetables or rapidly boiling water.

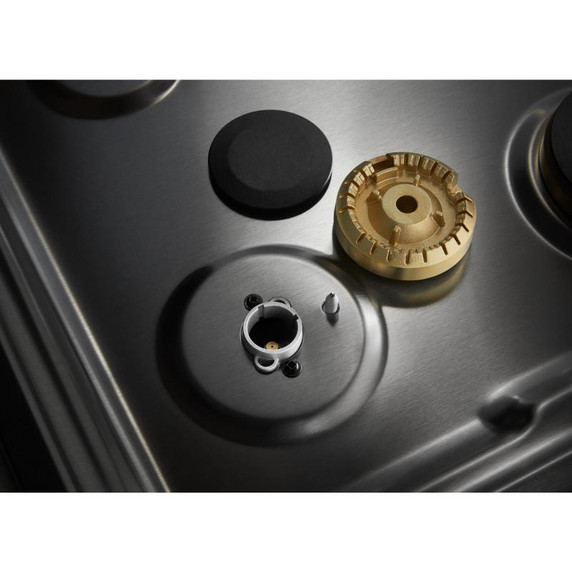

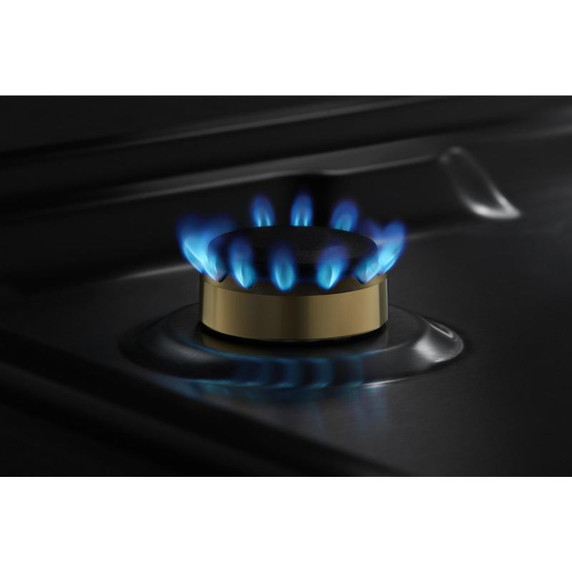

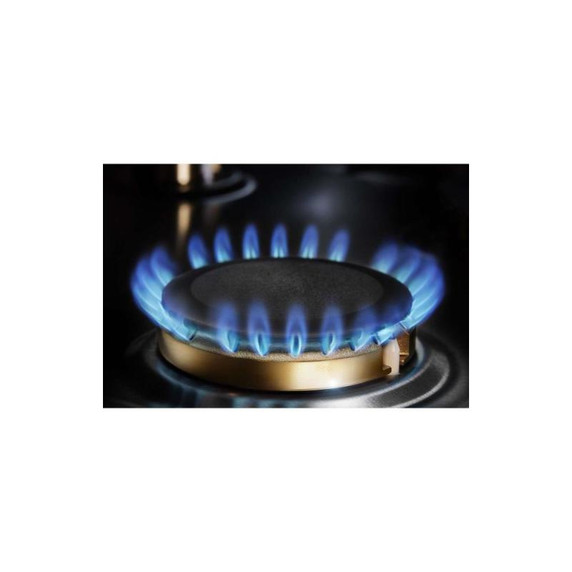

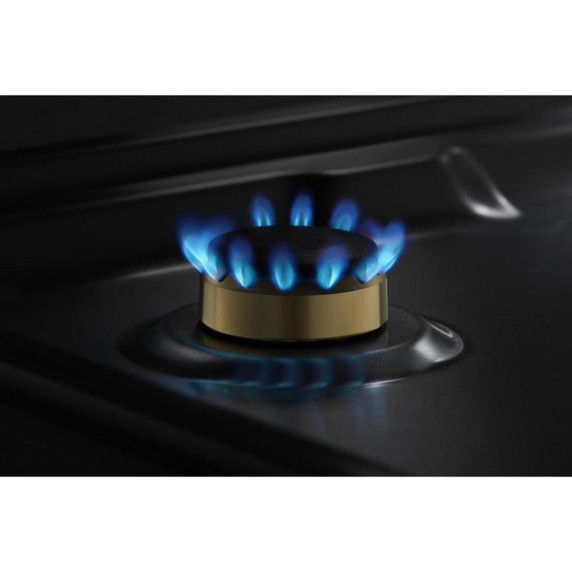

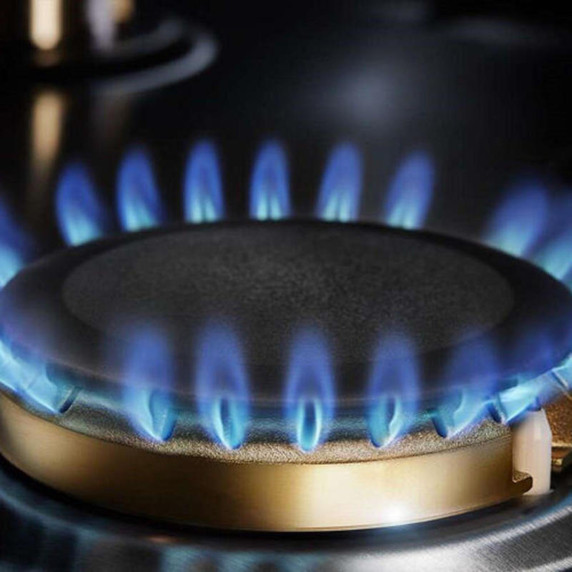

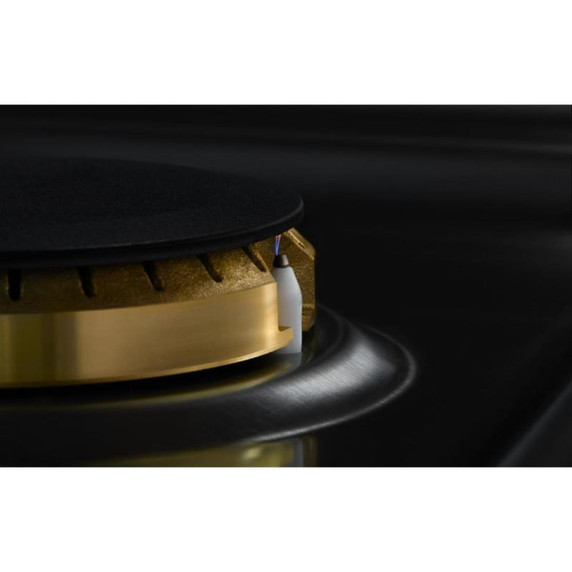

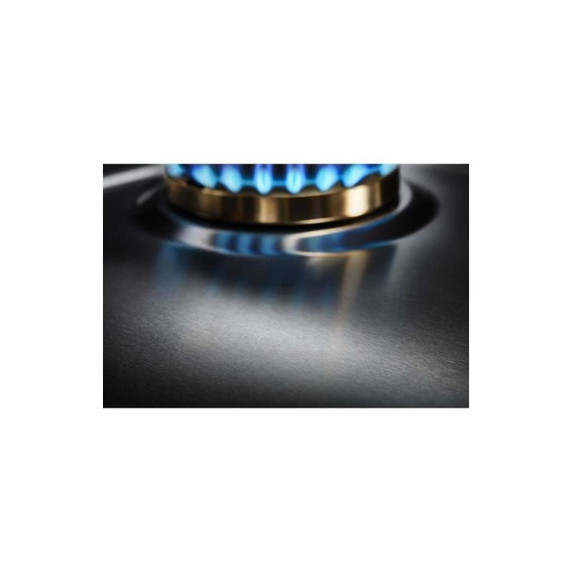

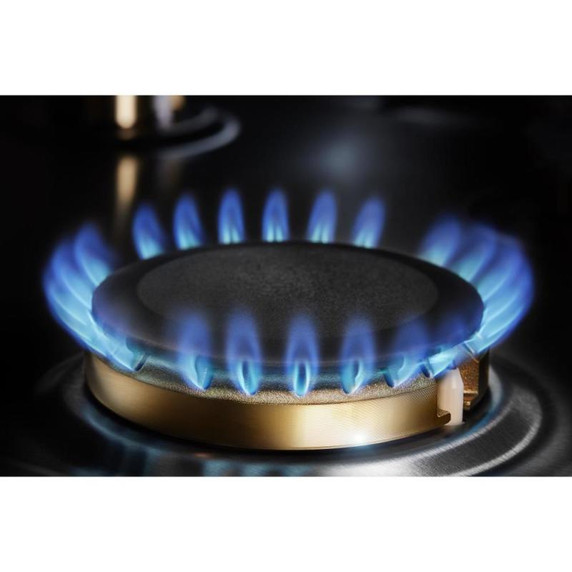

Brass Burners with Removable BaseElegant brass burners effectively direct heat for desired cooking results and can be removed for easy cleaning.

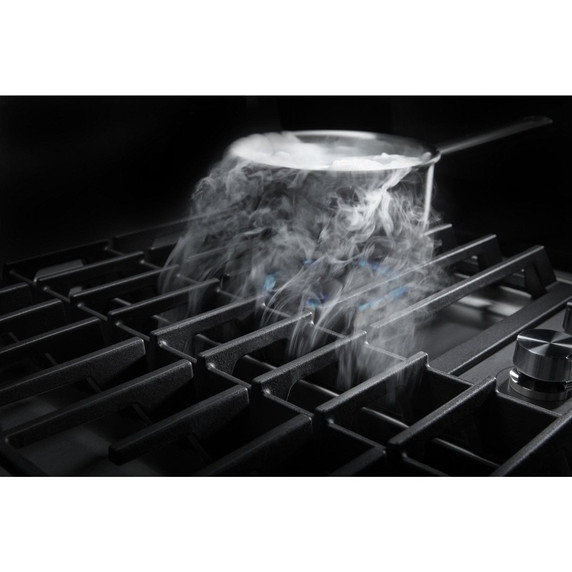

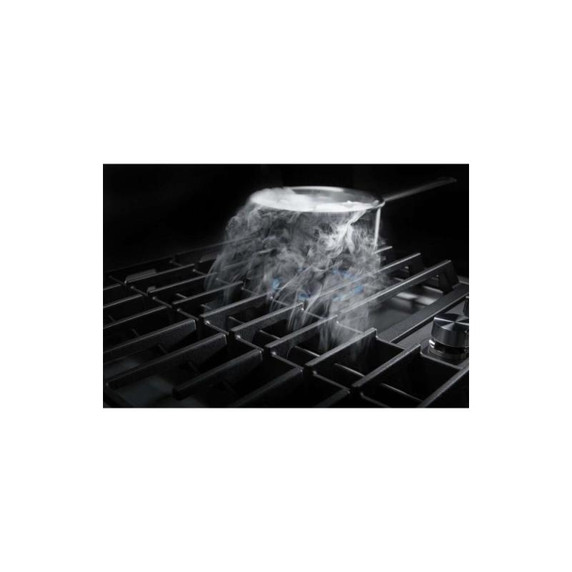

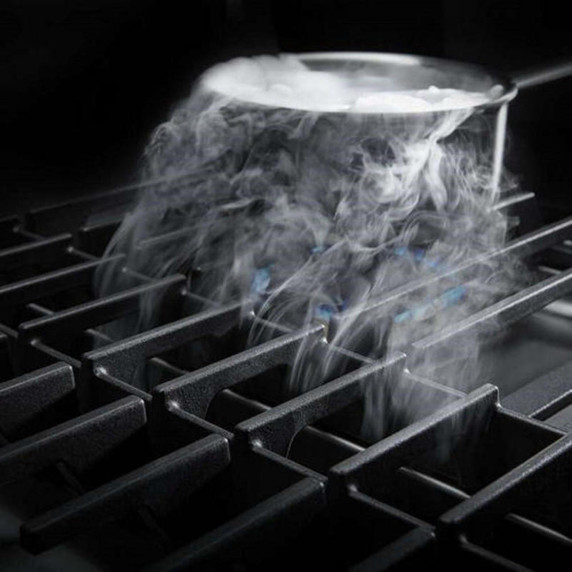

JX3™ Downdraft Ventilation System with 3 SpeedsDeveloped and refined by JennAir®, this downdraft ventilation system uses proximity ventilation that helps capture smoke, steam and odors at the cooking surface, whisking them down and out for a fresh, clean kitchen. It has been designed to provide optimal cooking performance, relying on a vertically mounted, 297 CFM Motor Class blower system.

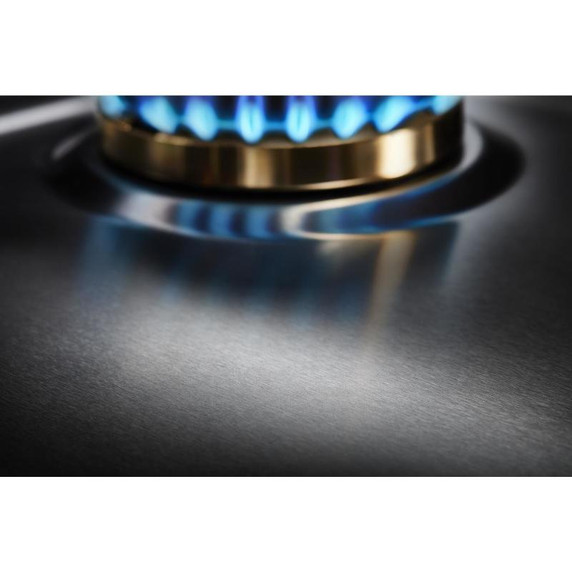

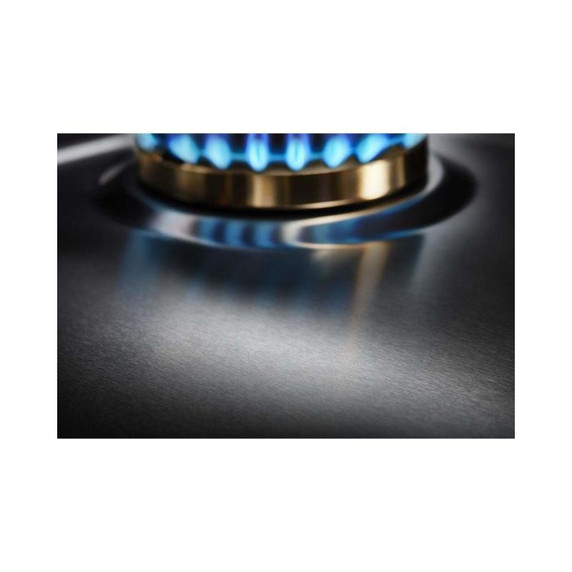

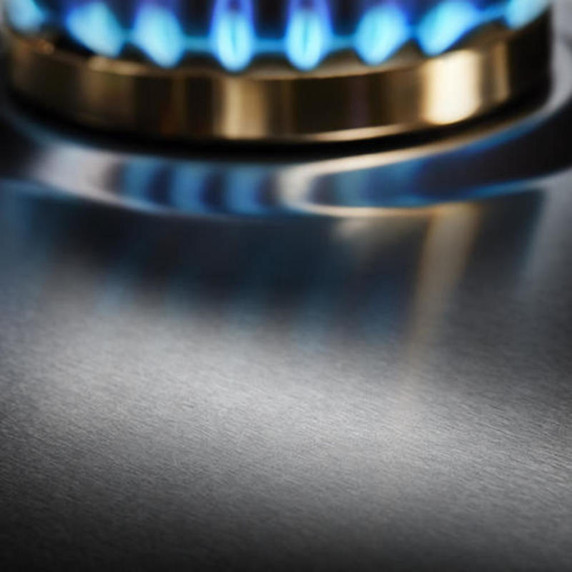

DuraFinish® ProtectionWith excellence in every detail, DuraFinish® Protection helps keep your cooktop’s surface looking like new, resisting yellowing, staining and scratching.

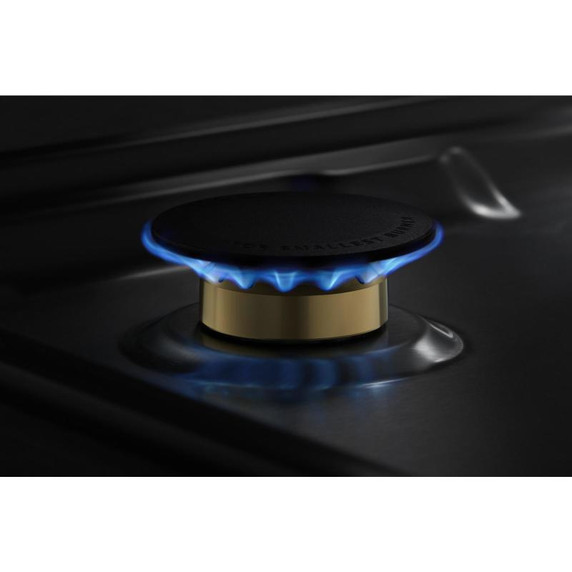

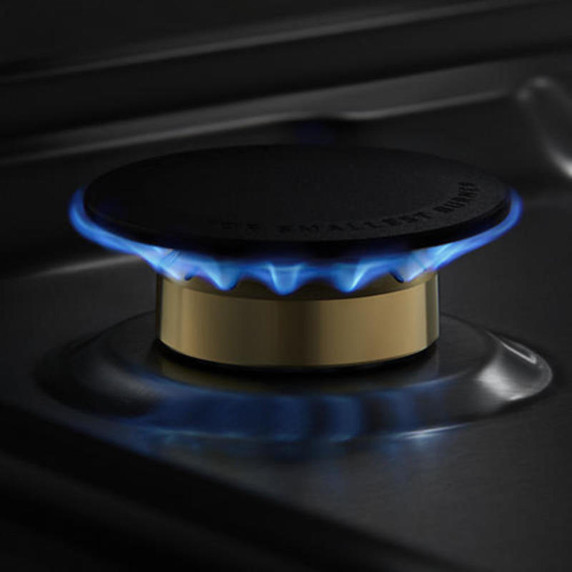

5,000 BTU Ultra-Low Output Burner with Melt CapProvides the optimal temperature for gently cooking delicate sauces and foods.
Convertible to Duct-Free VentilationKeep the view from your kitchen open and free from ductwork with this optional kit that allows conversion to duct-free ventilation.
Controls
Control TypeManual
Control LocationFront
Knob TypeMetal
Electrical
Volts120
Amps15
Power Cord IncludedYes
Watts60
Configuration and Overview
Fuel TypeGas
Design Type
Design ExpressionStainless Steel
Specifications
Country Of OriginUSA
Optional AccessoriesW10177003, W10620783
Product To Product Pairs
Extended Service Plan ParentEW08IW1Y, EW08IW2Y, EW08IW4Y
Features
Hot Surface Indicator LightNo
GriddleN/A
Automatic Pan DetectionNo
Digital DisplayNo
LP ConvertibleYes - Kit Included
Power BoostNo
Power Outage CompatibleYes
Heating Element On Indicator LightNo
Downdraft VentYes
Installs Over Built In OvenNo
Certifications
ULYes
ADA CompliantYes
Description
Size In36
Cooktop TypeDowndraft
Cooktop Details
Cooktop Element StyleSealed Burners
Left Front Element Burner TypeSealed Burner
Number Of Cooking Element Burners5
Right Rear Element Burner TypeSealed Burner
Center Front Element Burner Power15000BTU
Center Rear Element Burner TypeSealed Burner
Left Rear Element Burner Power5000BTU
Left Front Element Burner Power10000BTU
Left Rear Element Burner TypeEven-Heat™
Center Front Element Burner TypeSealed Burner
Center Rear Element Burner Power12500BTU
Right Rear Element Burner Power17000BTU
Ventilation System
Cfm Motor Class310
Depth21.5"
Height4.0"
Maximum Height17.44"
Net Weight80.6 lbs.
Width36.0"

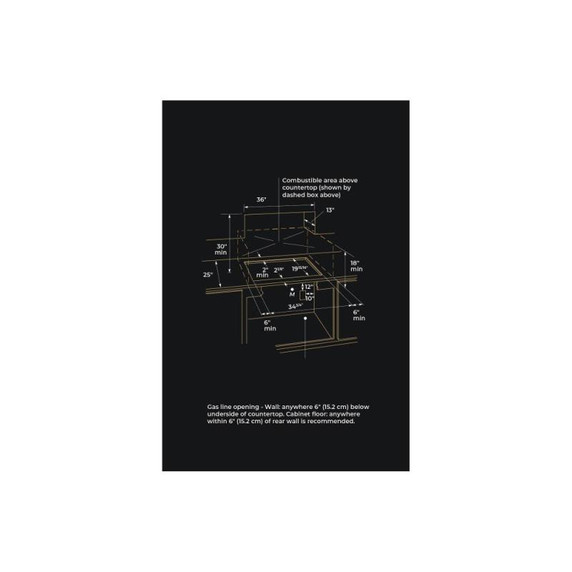

Cutout Depth19.94"
Cutout Width34.75"
Carton Depth Inch26.38
Carton Height Inch23.78
Carton Width Inch41.5
